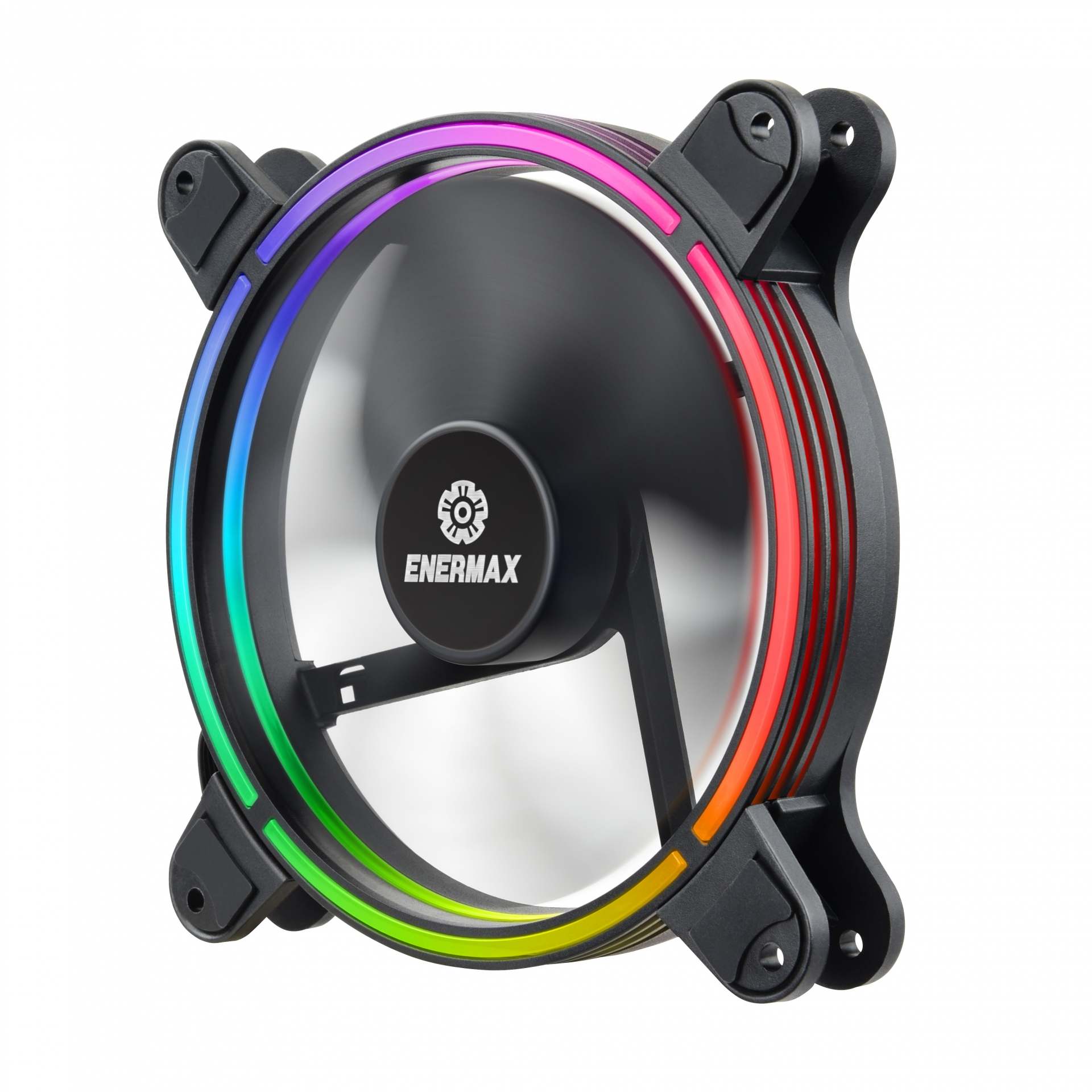

T.B. RGB 140mm RGB PWM PC Case Fan

‧ Stunning RGB Lighting Effects
‧ RGB Sync Ready
‧ Handy 3-in-1 Remote Control

COMPARE Compare List (0)


Unique halo arc-shaped frame shows gorgeous and vivid visual effect


Perfect for 280mm liquid cooling radiator


ENERMAX LED LIGHTING Technology provides consistent and uniform luminance


Incredibly bright and even lighting with no visible spots


Uneven lighting with visible spots


Synchronizable RGB lighting via motherboard (4-pin RGB header)

Compatible with the 4-pin RGB header(s) on motherboards


The 3-in-1 remote control enables users to easily select preferred RGB lighting effects, colors and fan speed


ENERMAX RGB control box can support up to 8 x RGB fans and 2 x RGB LED devices


Patented Twister Bearing technology

Long life and low noise

Detachable blade for easy cleaning


Shockproof rubber pads minimize vibration during operation



Fans/Model 1
Dimension (mm) 140(W) x 140(H) x 25(D)
Speed (RPM) 1200 (±10%)
*500-1200 (±10%) via remote-control
Air Flow (CFM) 56.89 (max)
Air Flow (m³/h) 96.65 (max)
Static Pressure (mm-H2O) 1.18(max)
Fan Maximum Noise (dBA) 21
Rated Voltage Fan (V) 12
Rated Current Fan (A) 0.2
Rated Voltage RGB LED (V) 12
Rated Current RGB LED (A) 0.35
MTTF (hours) ≧160,000 @ 25oC
Connector 6-PIN
Accessory 4 x Screw
EAN 4713157723482
UPC 819315023488
Box Dimension 145 x 160 x 28 mm
Gross Weight / unit 221 g
Carton Dimension 500 x 310 x 310 mm
Q'ty / carton 60 pcs
Gross Weight / Carton 14.5 kg
