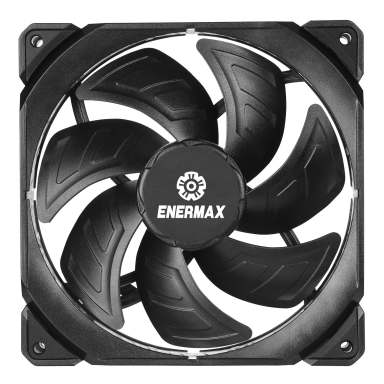

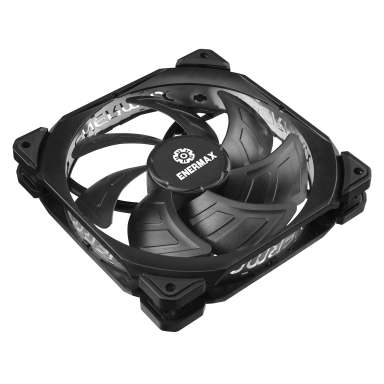

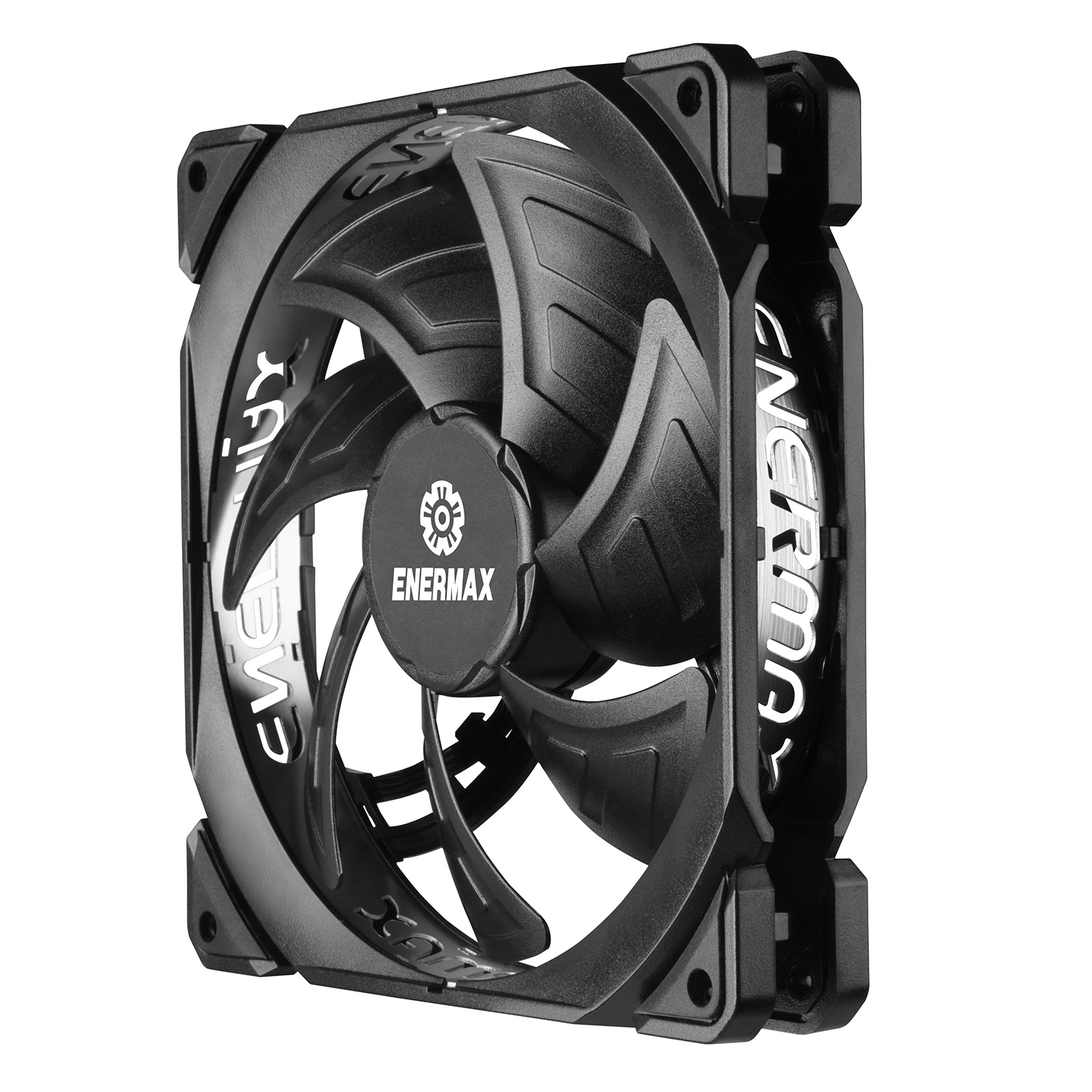

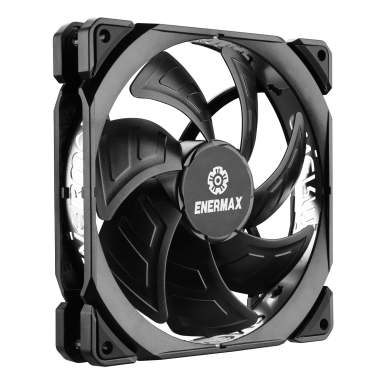

T.B.SILENCE ADV (14CM)

‧ Optimized Low 300 RPM
‧ Exclusive EnerfloTM Channel Blade For Ultra Silent Performance
‧ Patented Aluminum Modular Frame

The exclusive Enerflo™ channel blade design reduces the turbulence and increases the rotational stability




Advanced aerodynamic blades incorporate precision engineering of the blade angle and shape calculation for ultra silent performance and low acoustic noise




Patented modular frame with premium aluminum ring reflects both luxurious and quality




Patented Twister Bearing technology

Long life and low noise

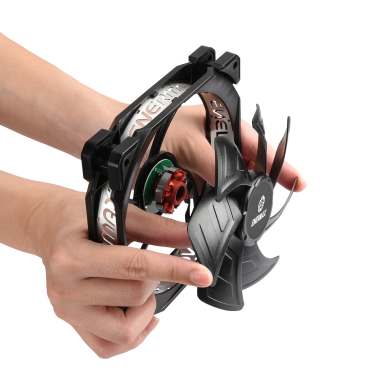

Detachable blade for easy cleaning




Vibration-damping rubber pads absorb the excessive vibration and noise




Product Introduction

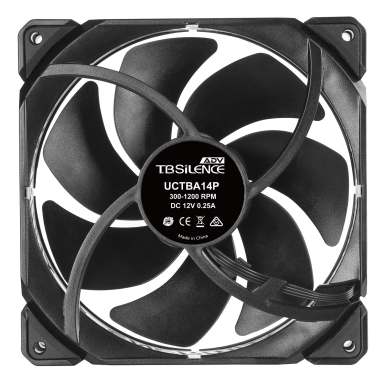

Model UCTBA14P
Fans/Model 1
Dimension (mm) 140(W) x 140(H) x 25(D)
Speed (RPM) 300-1200 (±10%) RPM
Air Flow (CFM) 66.57 (max)
Air Flow (m³/h) 113.1 (max)
Static Pressure (mm-H2O) 1.63 (max)
Fan Maximum Noise (dBA) 7~14.9 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 0.25 A
MTTF (hours) ≧160,000 hours @ 25oC
Connector 4 pin PWM

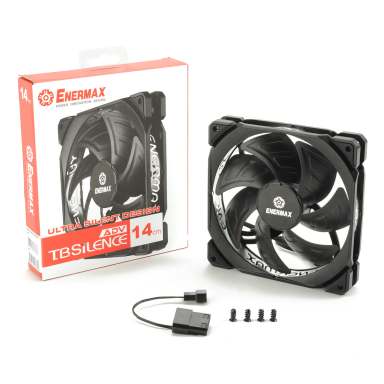

Accessory 4 x short screws , 1 x 4 pin fan power adapter
EAN 4713157723338
UPC 819315023334
Box Dimension 180 x 153 x 35 mm
Gross Weight / unit 250 g
Carton Dimension 570 x 357 x 335 mm
Q'ty / carton 60 pcs
Gross Weight / Carton 16.2 kg
