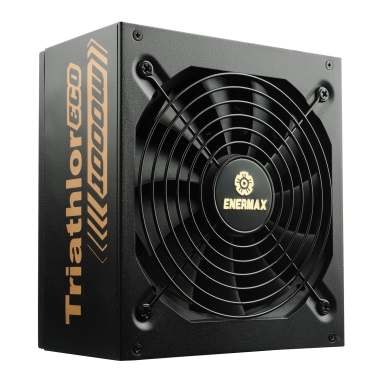

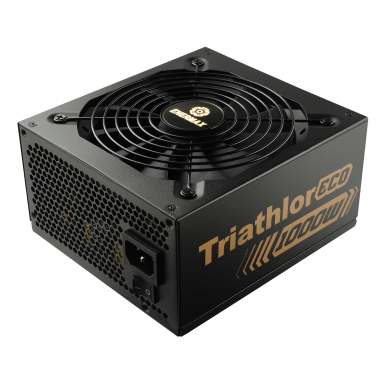

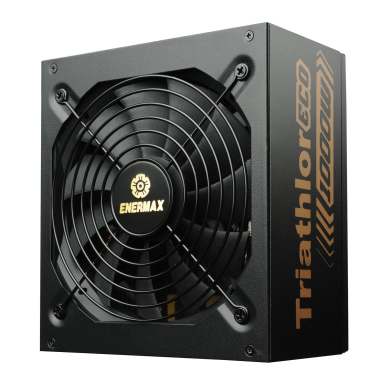

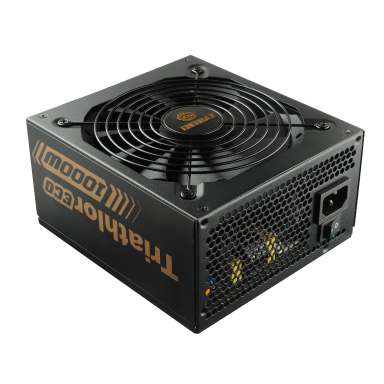

Triathlor ECO 1000W

‧80PLUS Bronze Certified
‧Single +12V rail for maximum hardware compatibility
‧SLI or CrossFire gaming system supported

80 PLUS Bronze Certified

82-88% efficiency @ 20-100% load. Compliant with 80PLUS® BRONZE efficiency requirements




2010 ErP Lot 6 ready

Help system meet 2010 ErP Lot 6 (<1W at standby mode) with high efficiency 5Vsb circuitry (With ErP Lot 6 enabled motherboard)

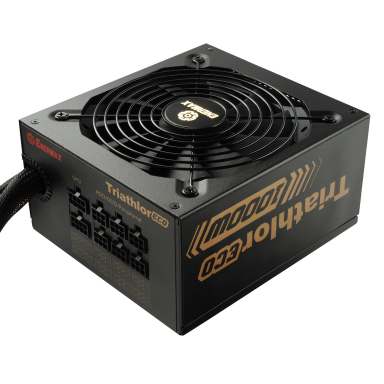

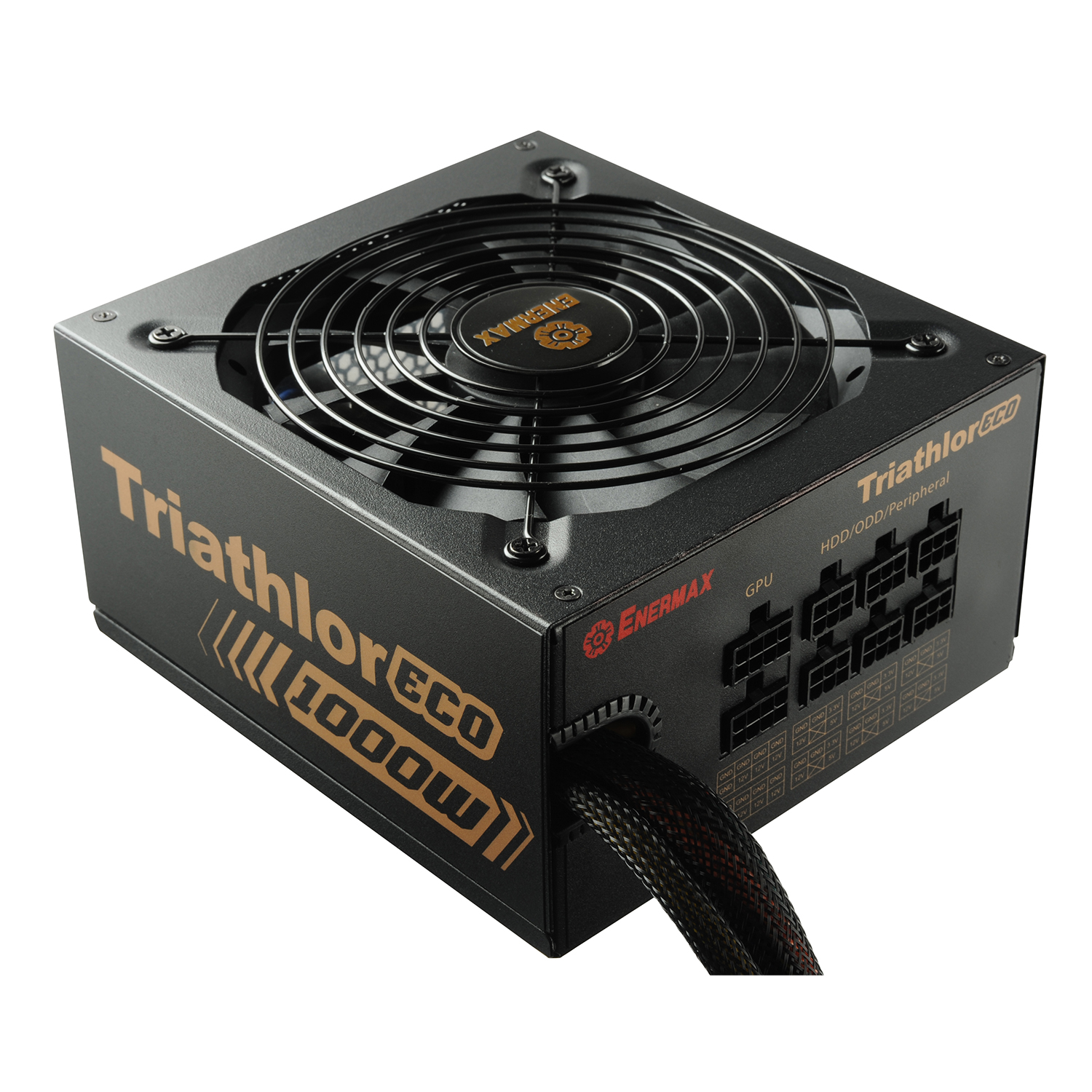

Hybrid modular cable

Facilitate system installation, reduce cable clutter, and enhance internal airflow and easy cable replacement




High compatibility ready

Single rail +12V output offers high compatibility with various types of high-end graphics card at full-load operation




World ready

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum




6+2P (8P) PCI-E connectors

New generation graphics cards supported with 6+2P (8P) PCI-E connector. Best solution for setting up multiple VGA cards gaming system or graphic working station




SafeGuard

Multiple protection circuitry of OVP, UVP, OPP, SCP & SIP ensures your system safety




Extended CPU power cable

65cm CPU power cable facilitates installation with bottom-mounted computer case



ETL1000EWT-M
Mainboard 24 Pin 1
[ 1x 50cm ]
CPU 4+4 Pin 1
[ 1x 65cm ]
CPU 8 Pin 1
[ 1x 60cm ]
PCI-E 6+2 Pin (8 Pin) 6
[ 3x 50/ 10cm ]
SATA 12
[ 4x 45/ 15/ 15cm ]
4 Pin Molex 4
[ 1x 45/ 15/ 15/ 15cm ]
4x4 Pin Molex + FDD 4 + 1
[ 1x 45/ 15/ 15/ 15/ 15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model ETL1000EWT-M
Efficiency BRONZE
Modular Semi-modular
Cable type Sleeve
Total power (W) 1000
Input Voltage (V) 100-240, Active PFC
Input Current (A) 15-7.5
Input Frequency (Hz) 47-63
Fan size (mm) 135
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 165 x 150 x 86
+3.3V(A) 24
+5V(A) 24
+12V1(A) 83
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 996
Combined Wattage 3.3V + 5V(W) 130
EAN code 4713157722102
UPC code 816163008438
Box dimensions (D x W x H), (mm) 255 x 243 x 100.5
Gross Weight / unit (kg) 2.6
