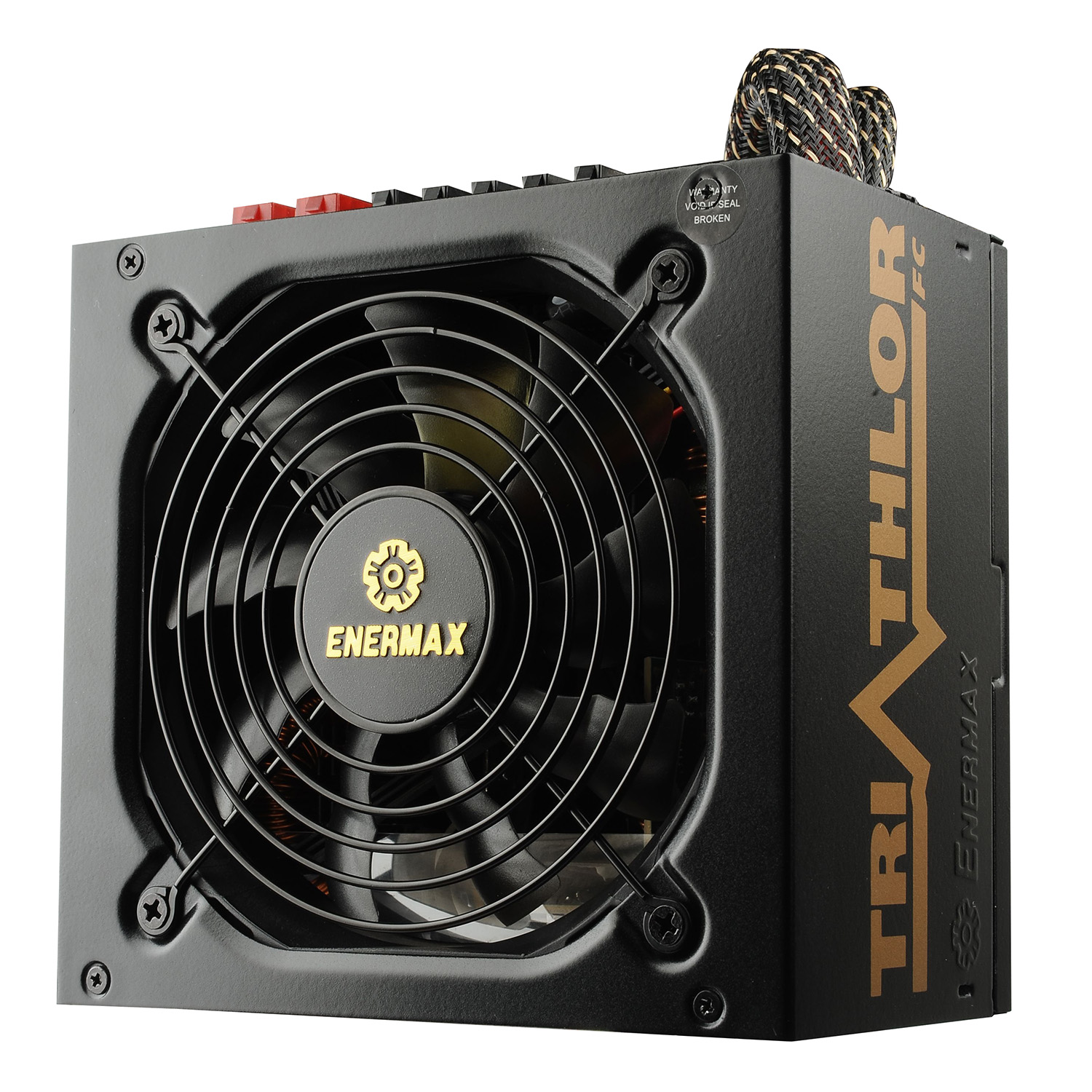

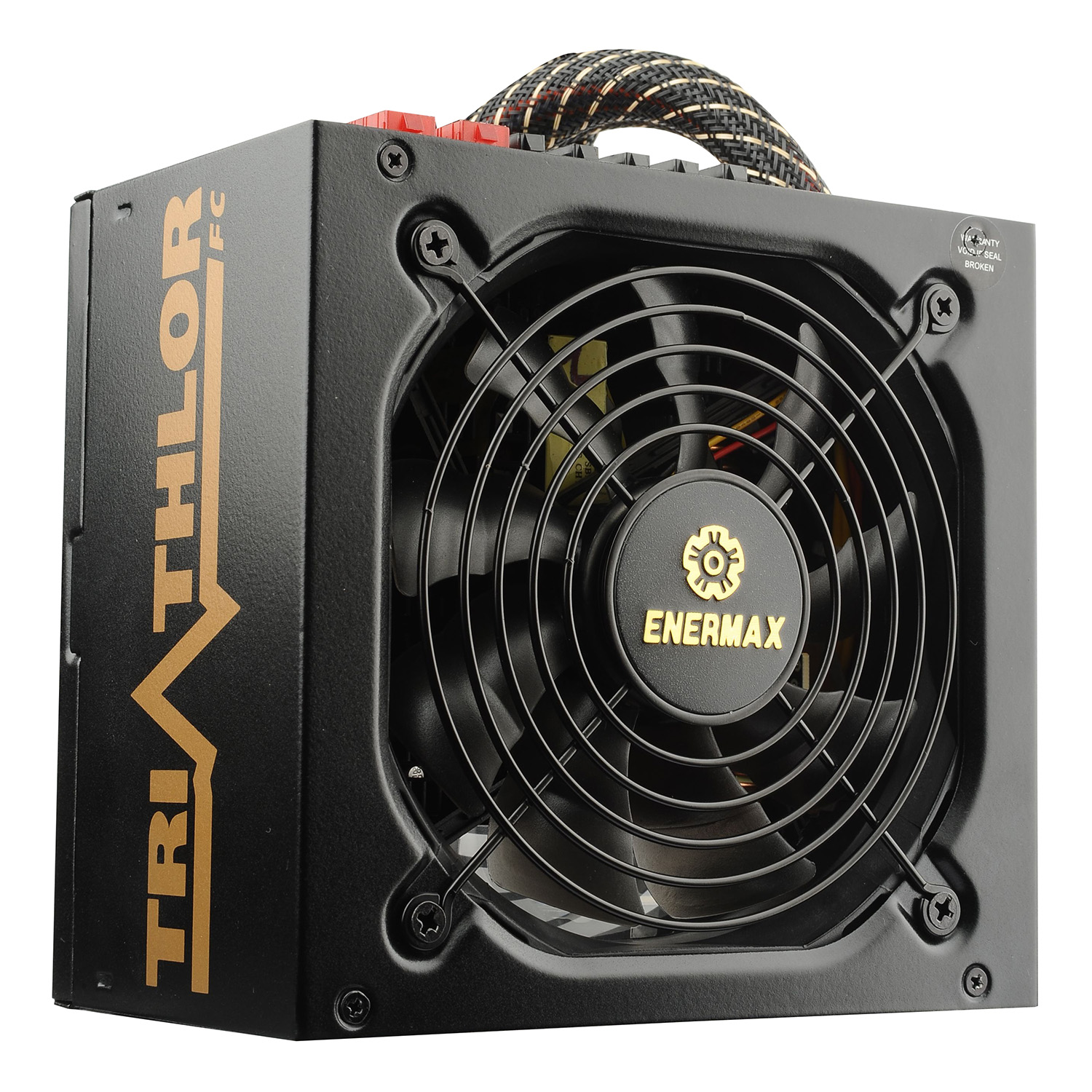

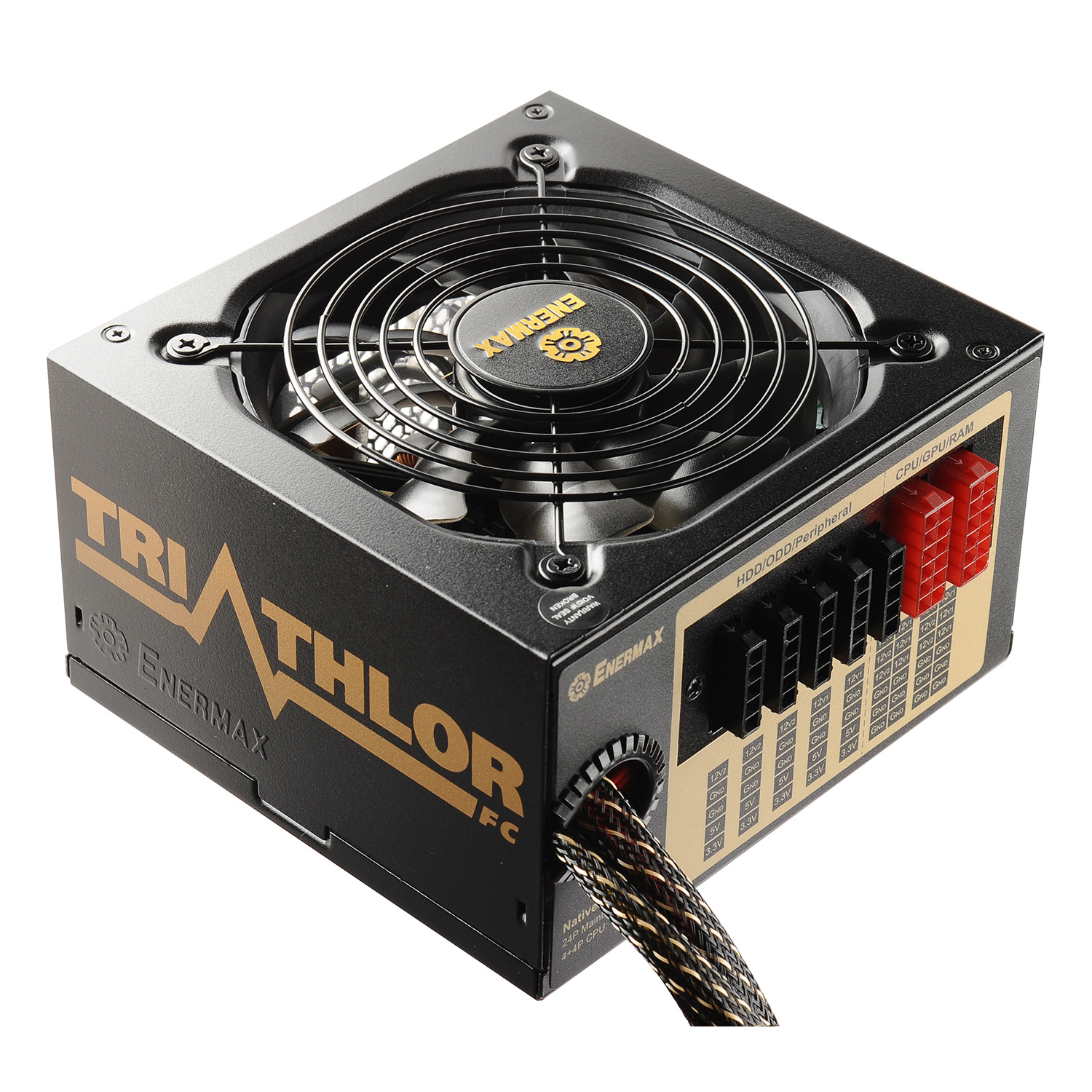

TRIATHLOR FC 700W

Features

  • ATX12V v2.4 ready!
    Compliant with the newest standard for desktop power supplies.
  • 82PLUS ready!
    82-88% efficiency @ 20-100% load. Compliant with 80PLUS BRONZE efficiency requirements.
  • Stability ready!
    DC to DC converter design lowers energy loss for higher efficiency and better dynamic response and cross regulation. 12V Synchronous Rectifier design for higher efficiency and greater power density.
  • Zero Load Design
    Stable voltage output even at 0W load, that supports the energy-saving functions of modern CPU and graphics cards (C6 State/Hybrid Mode) and prevents compatibility issues.
  • T.B. Silence fan inside!
    Integrated T.B. Silence 12cm fan with patented Twister Bearing to reduce the noise and prolong lifetime.
  • ErP Lot 6 2013 ready!
    Help system to meet ErP Lot 6 2013 (<0.5W at standby mode) with high efficiency +5Vsb circuitry*.
    *With ErP Lot 6 2013 enabled motherboard.
  • Future ready!
    12P flexible modular cables for possibly upcoming new CPU and GPU 10P and/or 12P connectors.
  • WORLD ready!
    100-240VAC in with automatic adjustment and active PFC for global usage.
  • 24/7 @ 40°C ready!
    Non-Stop industrial class performance at 40°C/104°F ambient.
  • AirGuard
    Unique air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
  • SafeGuard
    Industry-leading protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP.
  • SpeedGuard
    Advanced fuzzy logic 12cm fan speed control for optimal cooling and minimum noise. (Patented)
  • Multiple 12V rails!
    Multiple high current +12V rails design for maximum safety and compatibility.
  • Power Up ready!
    >98% 12V output to support high performance CPU & graphics card requirement.
  • 100% 105℃ Japanese electrolytic capacitors
    Highest components standards for maximum durability and stability.
  • DXXI ready!
    100% 6+2P (8P) PCI-E connector to support new generation DXXI graphics cards.

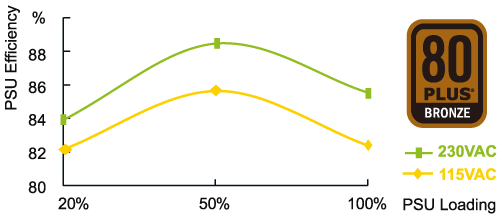

82PLUS ready!

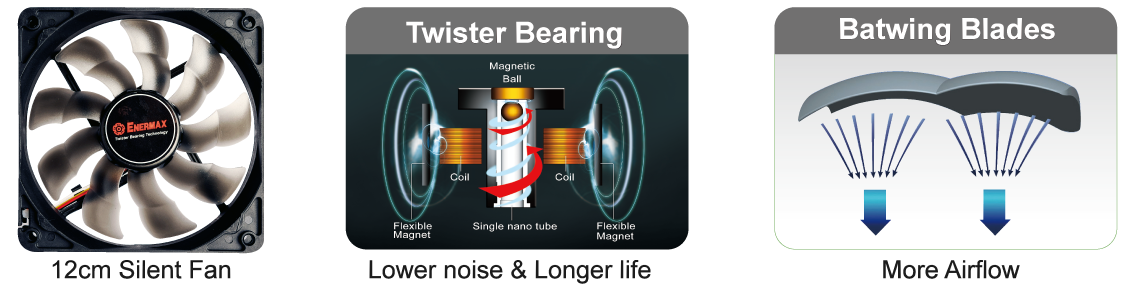

T.B.Silence fan inside!

Integrated T.B.Silence 12cm fan with patented Twister Bearing to reduce the noise and prolong the lifetime.

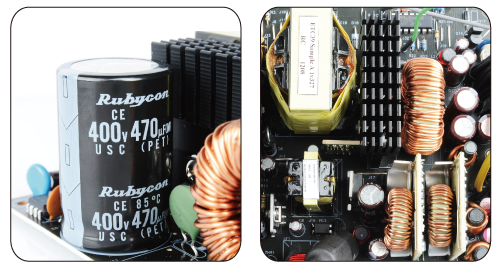

100% Japanese Capacitors

For maximum durability and stability.

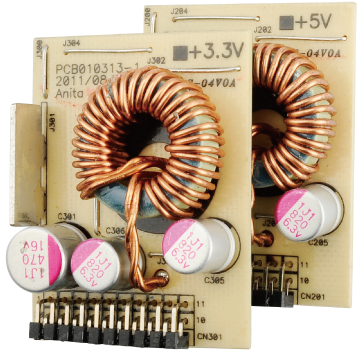

Stability ready!

Advanced DC to DC design for superior dynamic response and cross regulation.




AirGuard

Optimal aero-dynamical design reducing noisy air turbulences.

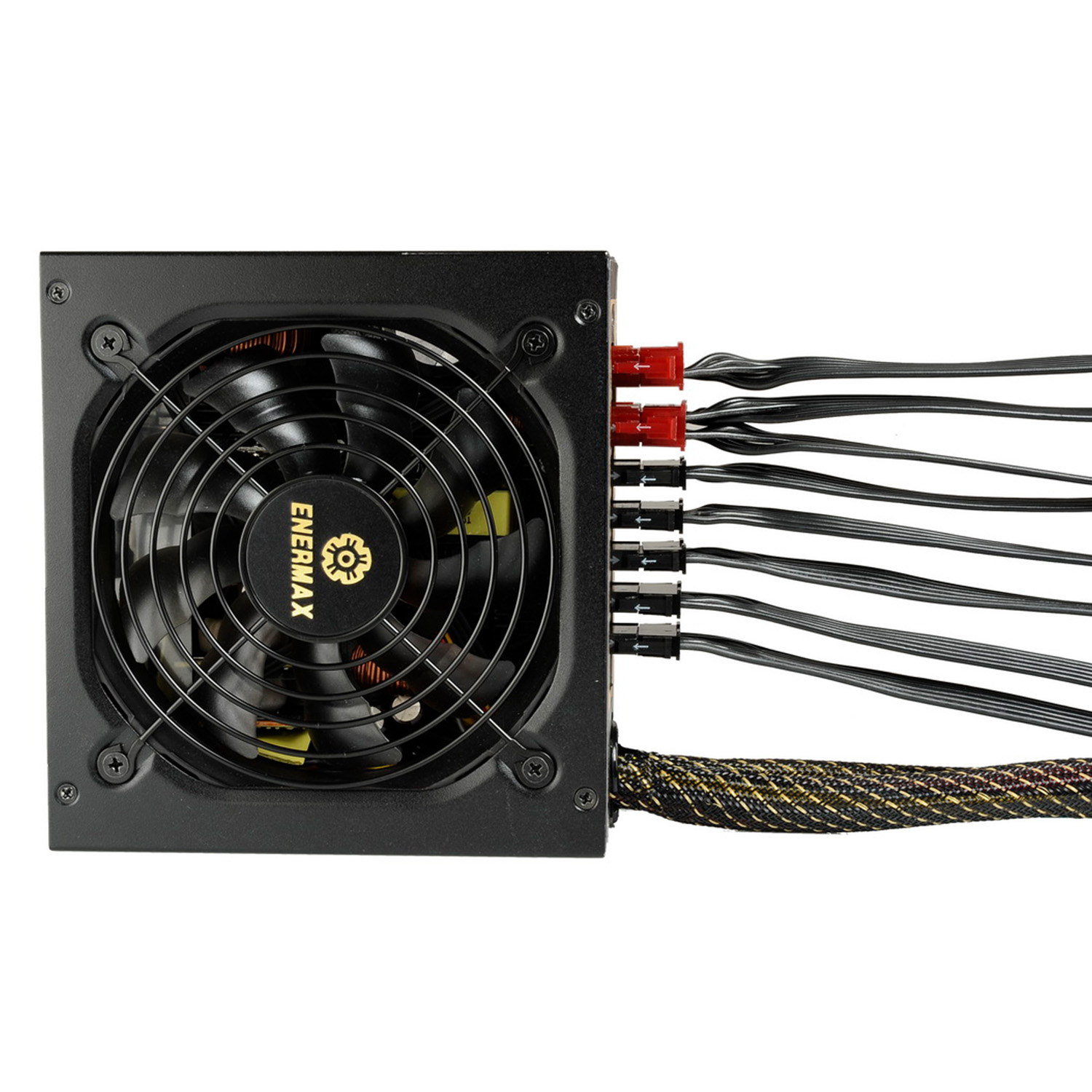

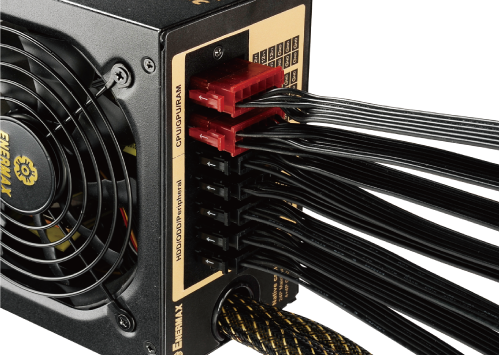

Flat modular cables

Flexible cable management with black flat modular cables.




Product Introduction

ETA700AWT-M
Mainboard 24 Pin 1
[ 1x 55cm ]
CPU 4+4 Pin 1
[ 1x 60cm ]
PCI-E 6+2 Pin (8 Pin) 4
[ 4x 50cm ]
SATA 9
[ 3x 50/15/15cm ]
4x4 Pin Molex + FDD 4+1
[ 1x 50/15/15/15/15cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model ETA700AWT-M
Efficiency BRONZE
Modular Semi-modular
Cable type Sleeve + Black flat
Total power (W) 700
Input Voltage (V) 100-240
Input Current (A) 9-3.5
Input Frequency (Hz) 50-60
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 140x150x86
+3.3V(A) 24
+5V(A) 24
+12V1(A) 30
+12V2(A) 30
-12V(A) 0.5
+5Vsb(A) 2.5
Combined Wattage 12V (W) 696W
Combined Wattage 3.3V + 5V(W) 140
EAN code 4713157722201
UPC code 816163008179
Box dimensions (D x W x H), (mm) 255x243x100.5
Gross Weight / unit (kg) 1.9
