TwisterStorm

Features

  • 3500 max rpm industrial grade performance
  • Shift Speed Control offers 3 speed modes for various applications
  • Storm-flow blades generate +30% airflow and enhance airflow momentum
  • Patented Twister Bearing for long lifespan and low operation noise
  • Detachable blades for easy cleaning
  • Isolator-mounts for shockproof and easy installation

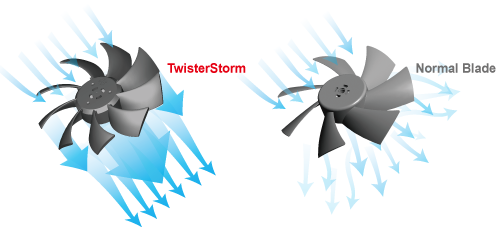

Storm-flow blade design

Storm-Flow blade design comes with sophisticate inclination inlet & outlet angles. This provides up to 30% more airflow than normal blades, and concentrates air output pressure.

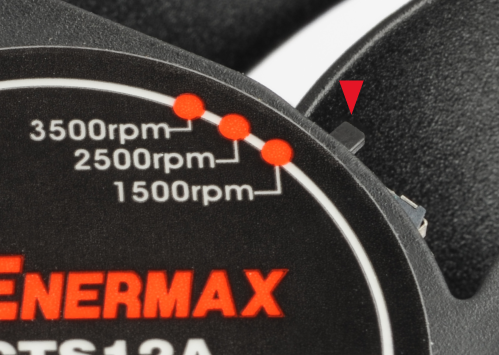

Shift Speed Control

Shift Speed Control allows users to adjust the preferred fan speed range by switching the speed controller at the fan hub. This enables the fan to meet different application and gets the balanced cooling performance and silent operation.




Twister Bearing

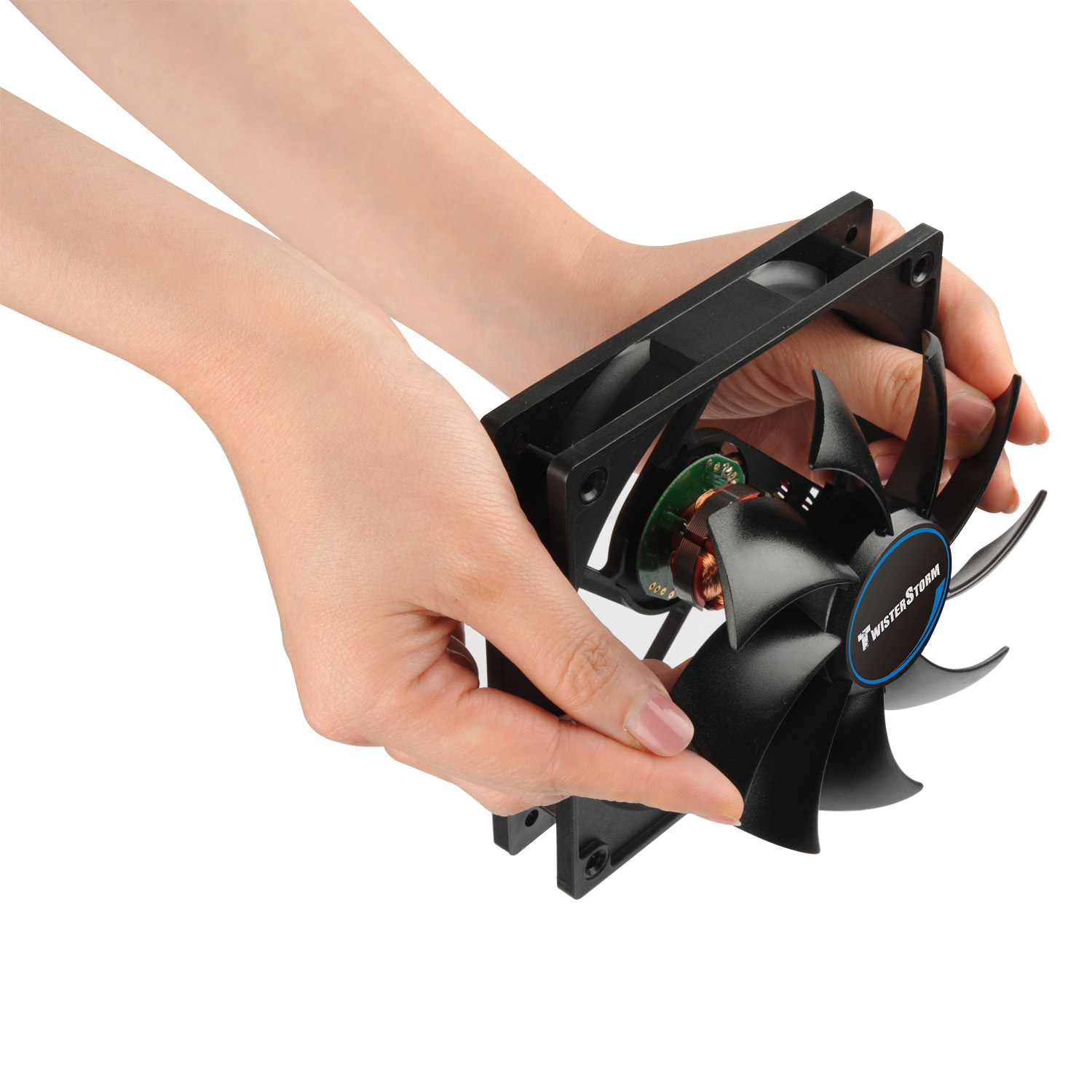

Patented Twister bearing comes with Storm version, allowing stable operation at 3500rpm, with MTBF up to 160,000 hours. Furthermore, Twister Bearing also features the detachable blades design for easy cleaning and maintenance.



Model UCTS12A
Fans/Model 1
Dimension (mm) 120(W) x 120(H) x 26.4(D)
Speed (RPM) 1500 / 2500 / 3500 RPM
Air Flow (CFM) 72.46 / 115.75 / 154.53 CFM
Air Flow (m³/h) 123.11 / 196.61 / 262.55 (m3/h)
Static Pressure (mm-H2O) 2.512 / 6.698 / 11.125 (mm-H2O)
Fan Maximum Noise (dBA) 23 / 30 /38 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 0.25 A / 0.60 A / 1.30 A
MTTF (hours) ≧160,000
Connector 3 pin connector
Accessory 4 x screw , 4 x Isolator-mounts, 1 x 4 pin fan power adaptor
