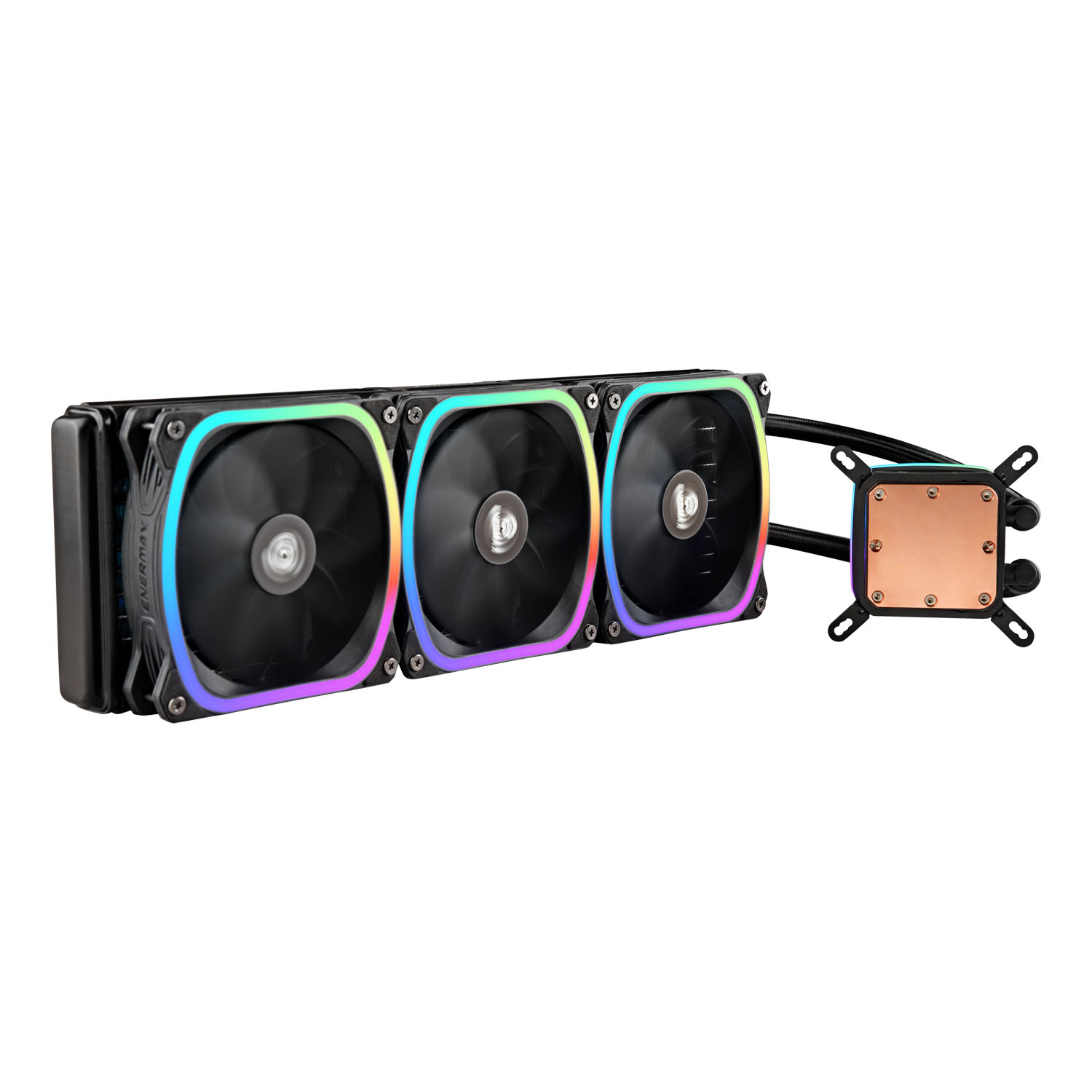

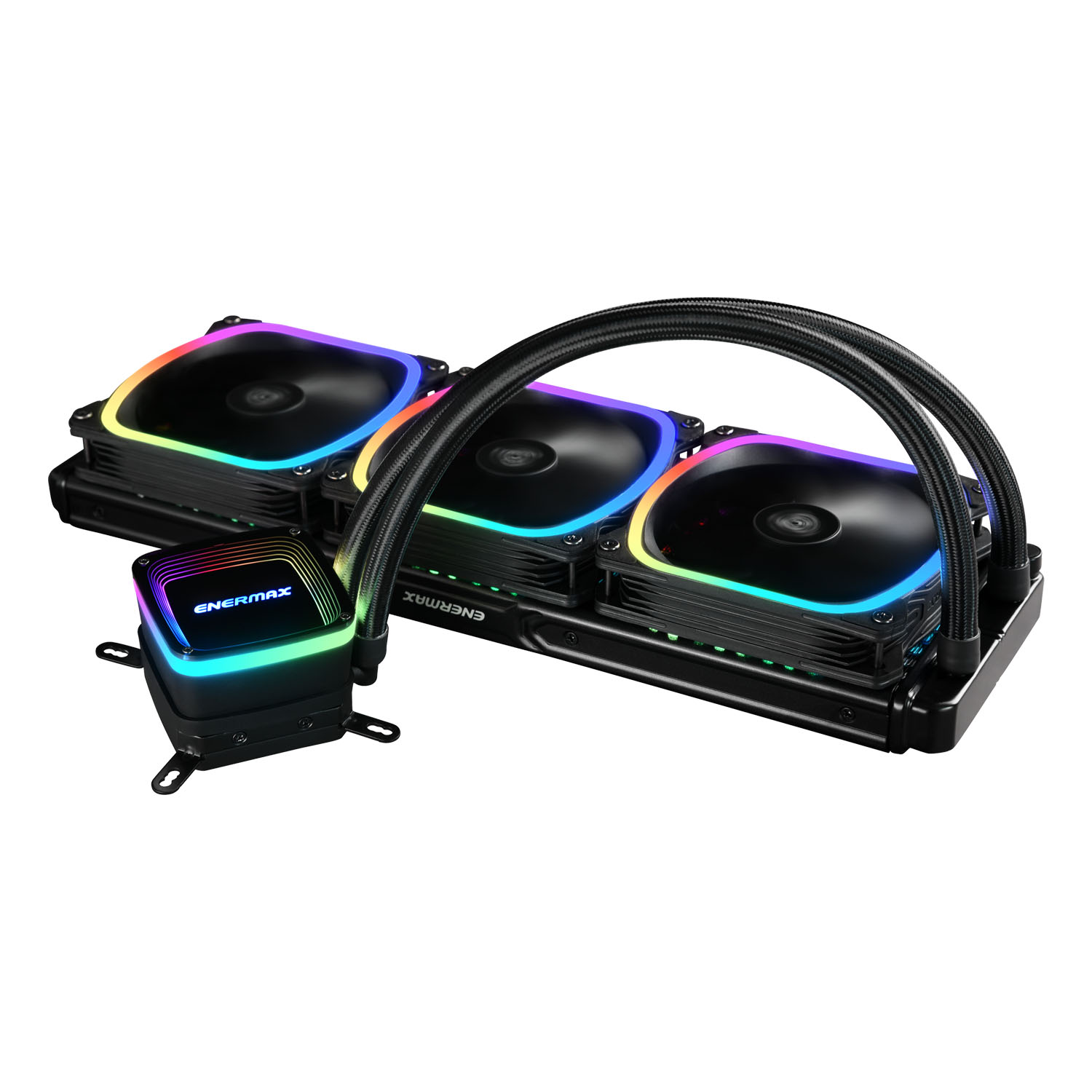

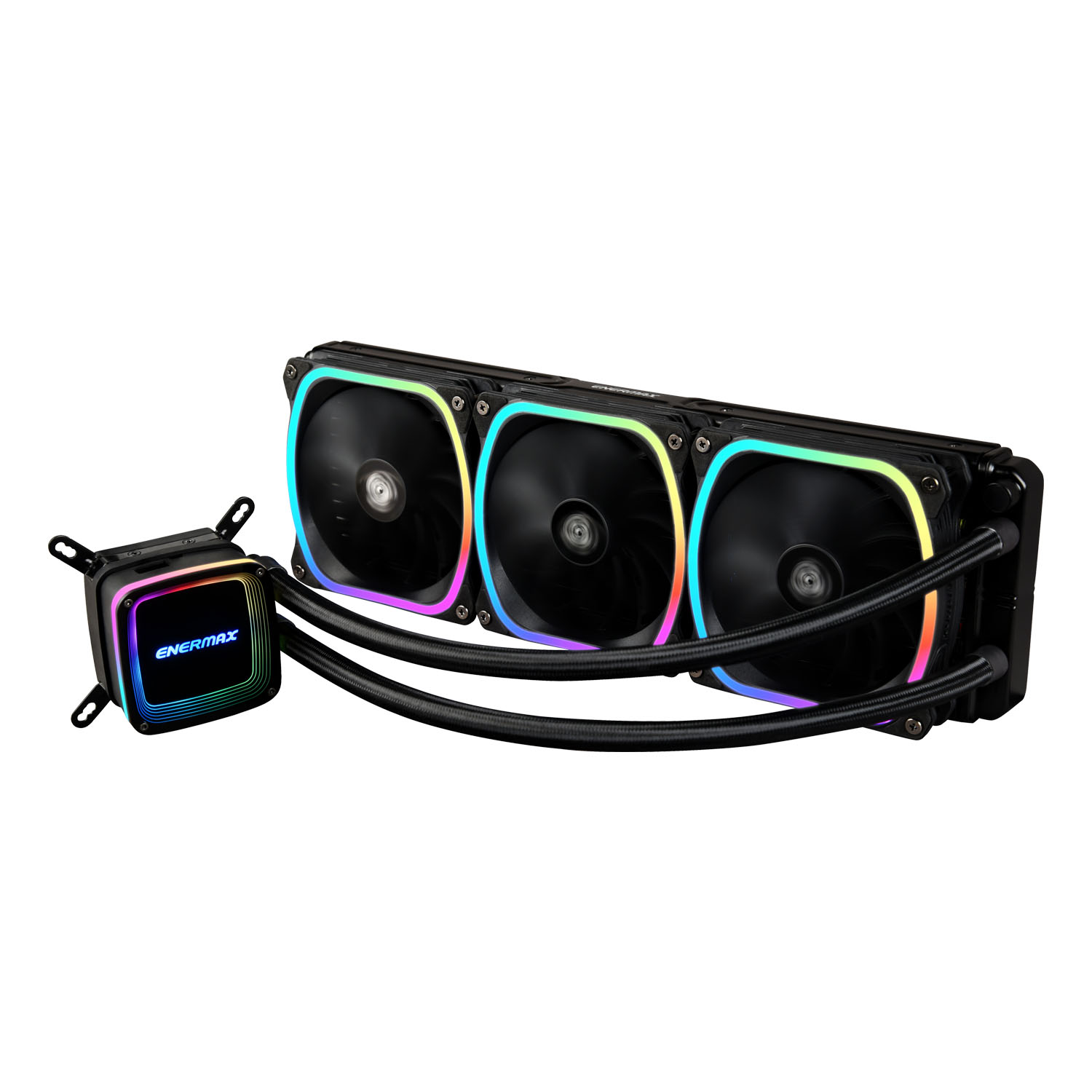

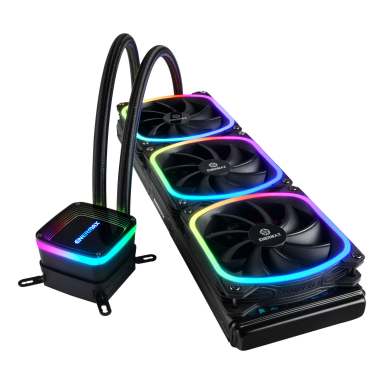

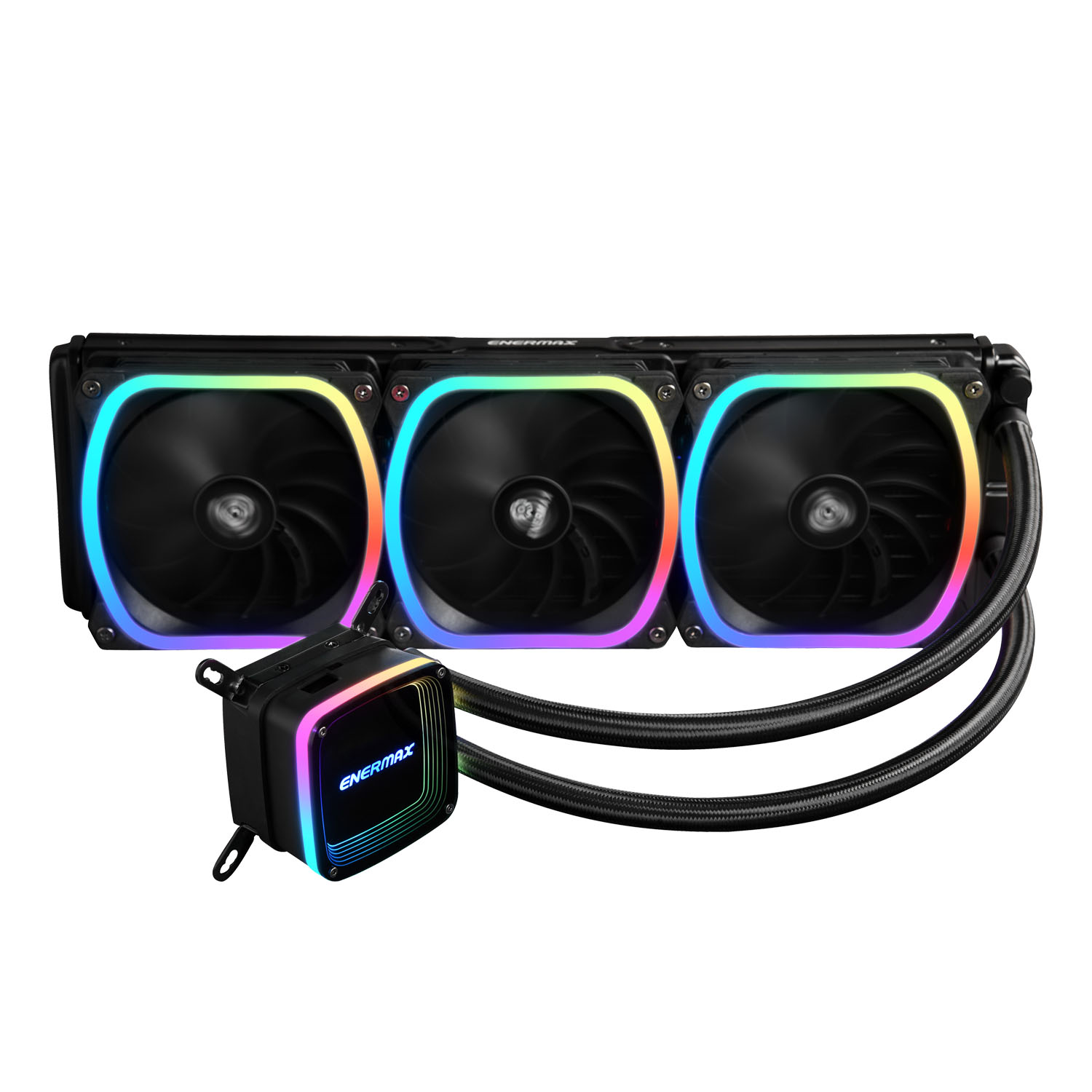

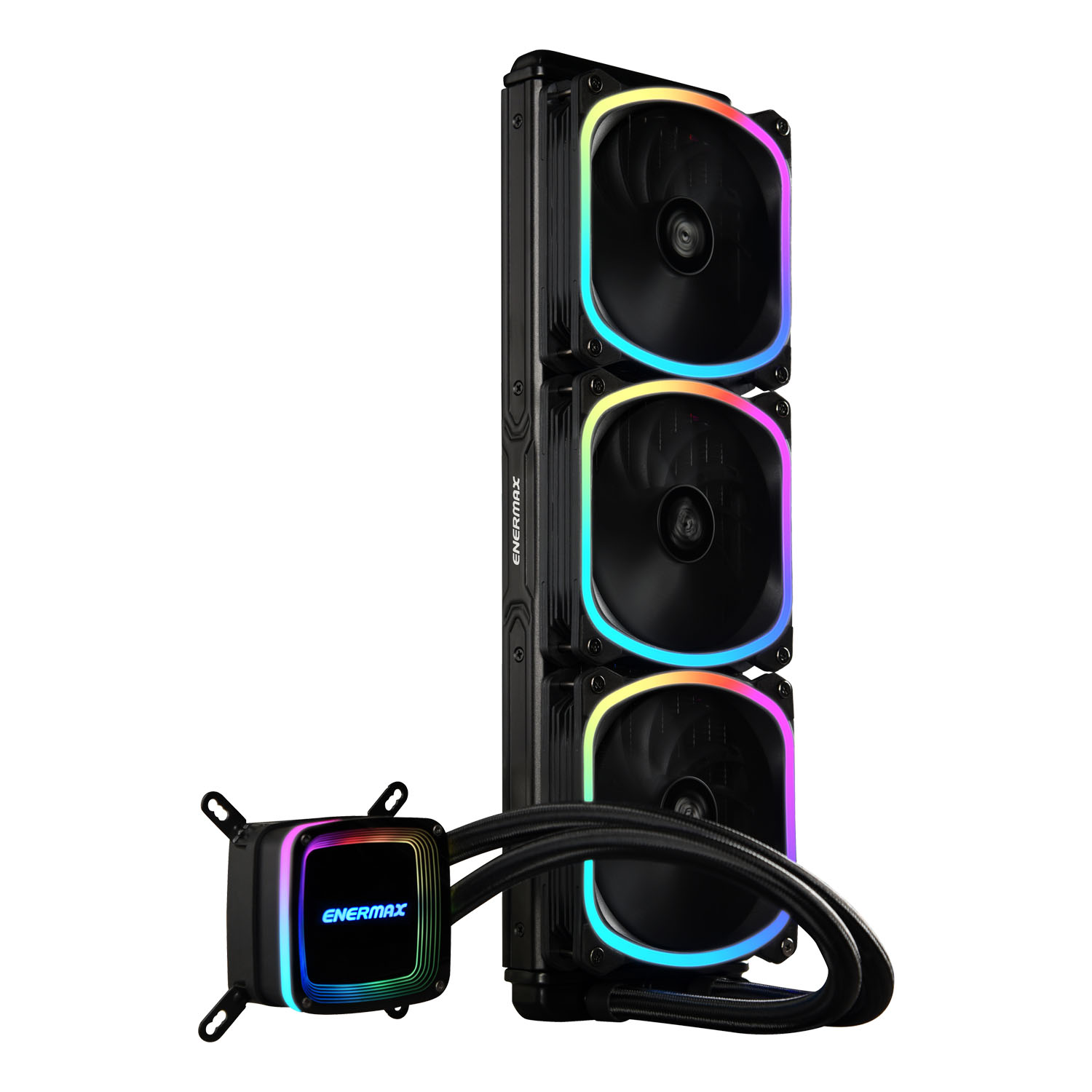

AQUAFUSION Series 360mm Liquid CPU Cooler

‧ Glossy acrylic and Aurabelt™ water block for
vivid lighting effects
‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ ENERMAX SquA RGB fans included
‧ Supports addressable RGB M/B sync

COMPARE Compare List (0)

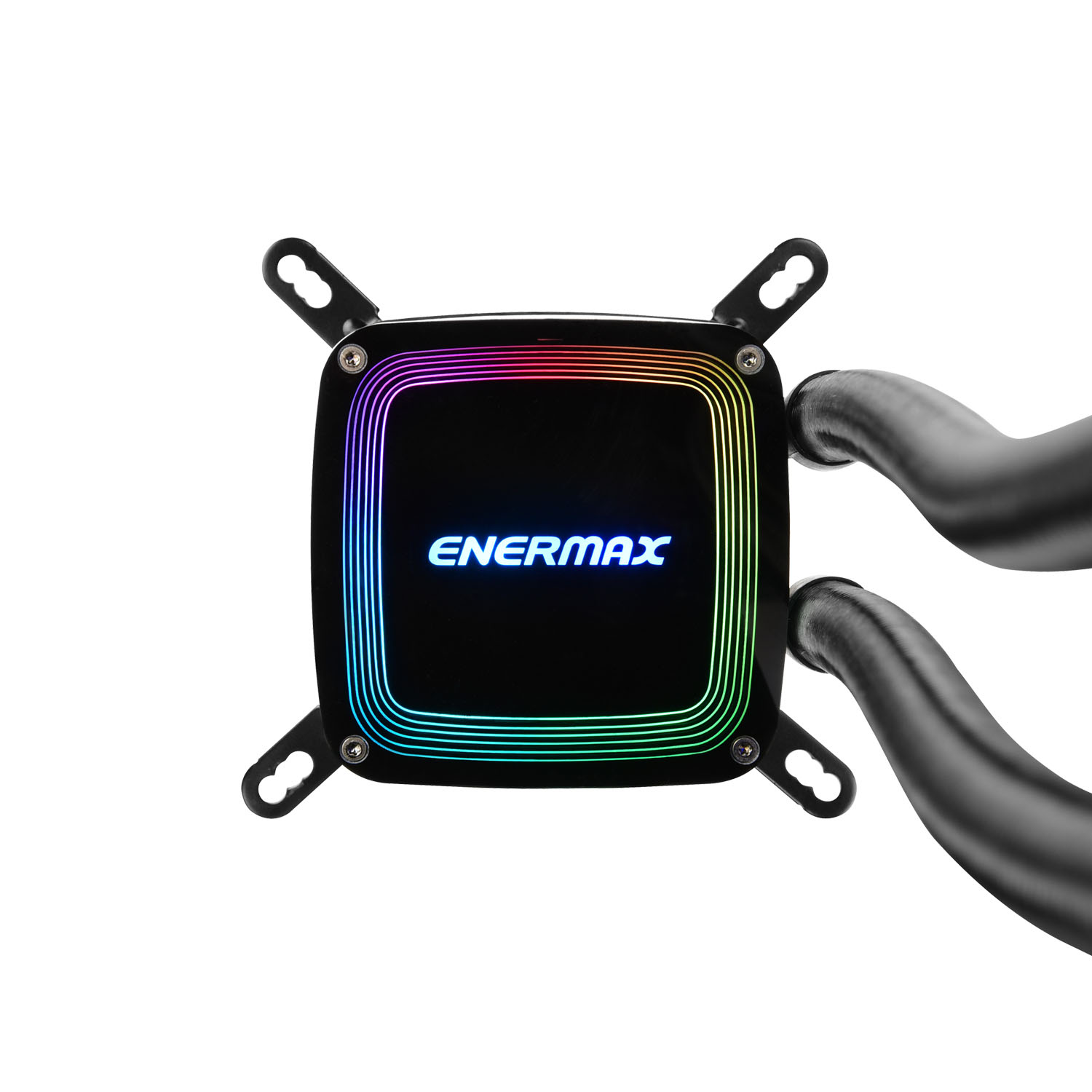

Luminous Aurabelt™ for vivid lighting effects

The 3D Layer Design with Aurabelt™ provides unique rainbow effects with 16.8 million colors


Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolate the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

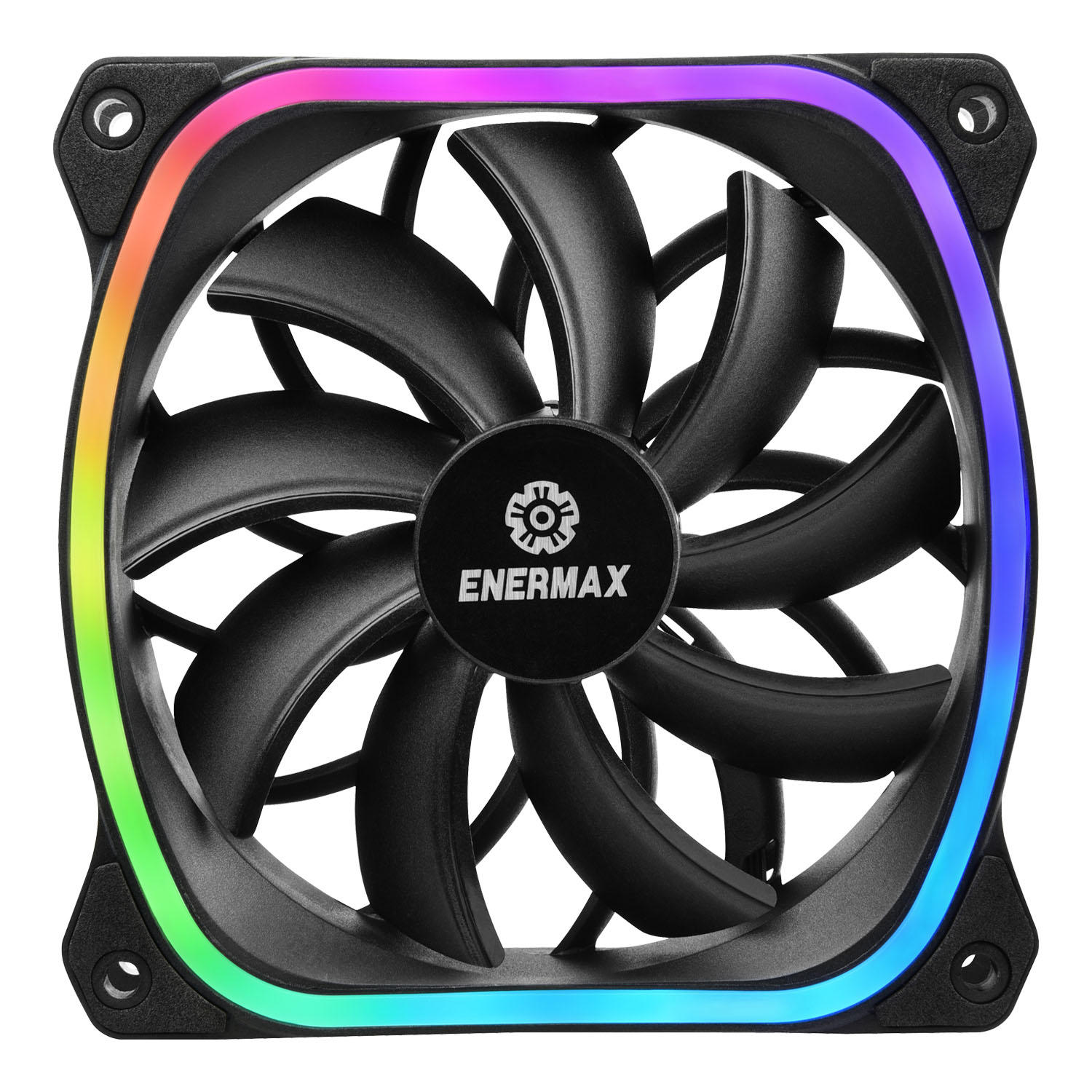

ENERMAX SquA RGB, square-shaped addressable RGB fans featuring vortex frame design can generate centered, stronger air pressure, especially perfect for radiator


Addressable RGB lighting synchronization

AQUAFUSION is designed to synchronize with addressable RGB motherboards (3 pin assignment is 5V/D/G) which users can program preferred lighting effects via motherboard software


2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed


Premium 400mm weaved tubing is perfect for mainstream system builds


The channels on radiator are meticulously design, combined with thin aluminum fins to deliver high heat exchange capacity.




Product Introduction


Installation Guide

Model ELC-AQF360-SQA
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP (W) 380W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 394 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12V
Pump Rated Current (A) 0.7A
Pump Rated Current - RGB LED (A) 0.42A (5V)
Fan Dimension (mm) 120 x 120 x 26 mm
Fan MTTF (hours) ≧ 100,000 hrs
Fan Speed (RPM) 500-2000 rpm
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.38A
Fan Rated Current RGB LED (A) 0.68A (5V)
Fan Air Flow (CFM) 39~79.8 CFM
Fan Static Pressure (mm-H2O) 0.67~3.6 mm-H2O
Fan Maximum Noise (dBA) 17~32.6 dBA
Fan Connector 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
Fan Screw M3.5
Thermal Grease Dow Corning® TC-5121C
EAN 4713157724496
UPC 819315024492
Box Dimension 448 x 205 x 137 mm
Gross Weight / unit 2.34 kg
Carton Dimension 467 x 292 x 440 mm
Q'ty / carton 4 PCS
Gross Weight / Carton 10.3 kgs
