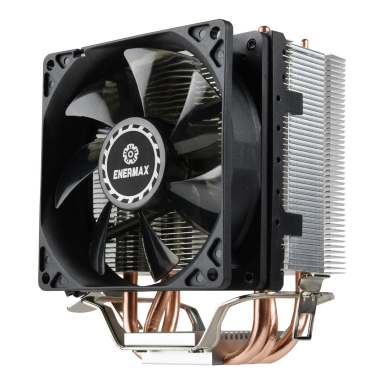

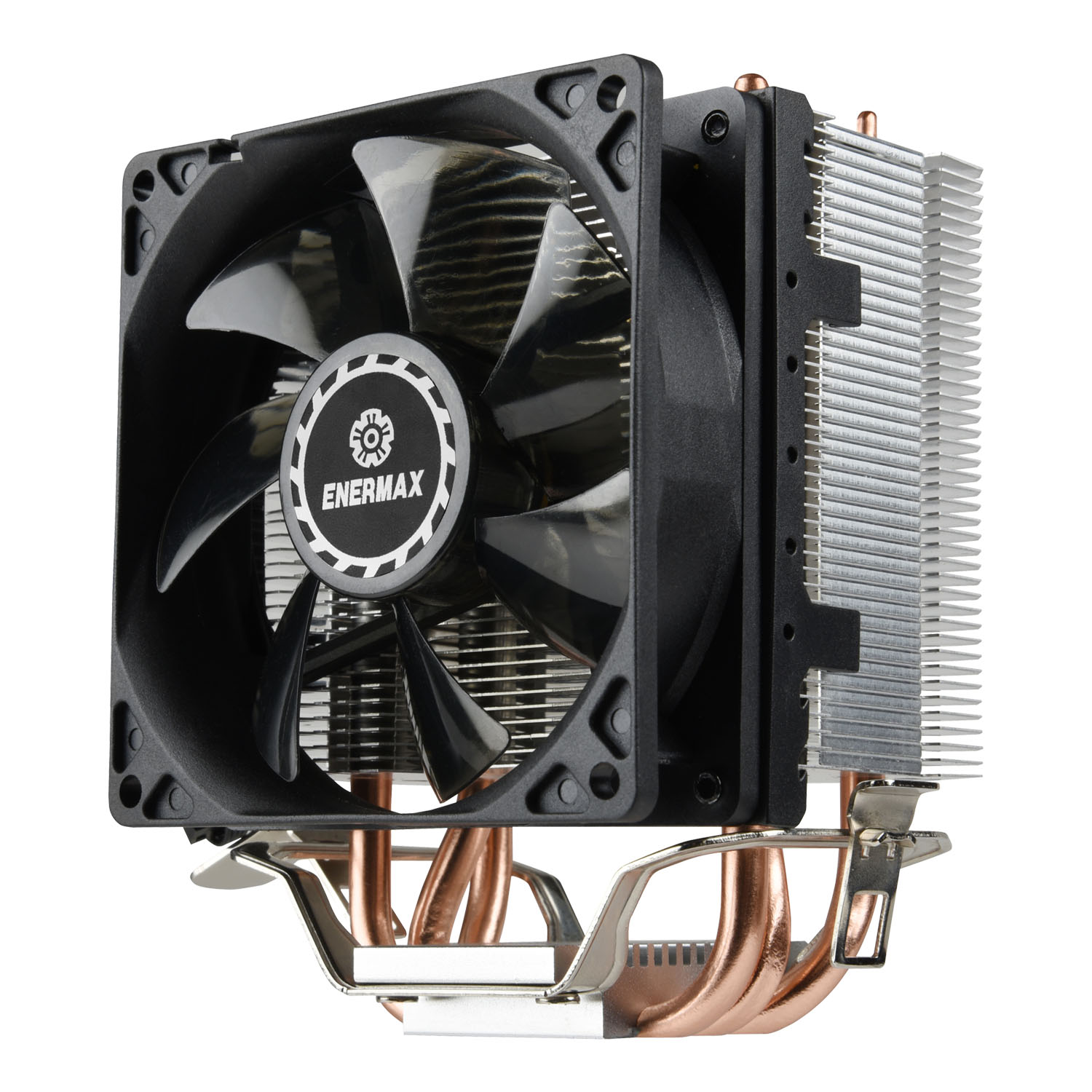

ETS-N31

‧Superb compatibility with chassis and RAM modules
‧Effective cooling solution
‧130W TDP cooling capacity

Maximum compatibility

Compact size structure gives users greater flexibility in selecting chassis




Patented VGF (Vortex Generator Flow) to increase air convection around the heat pipes

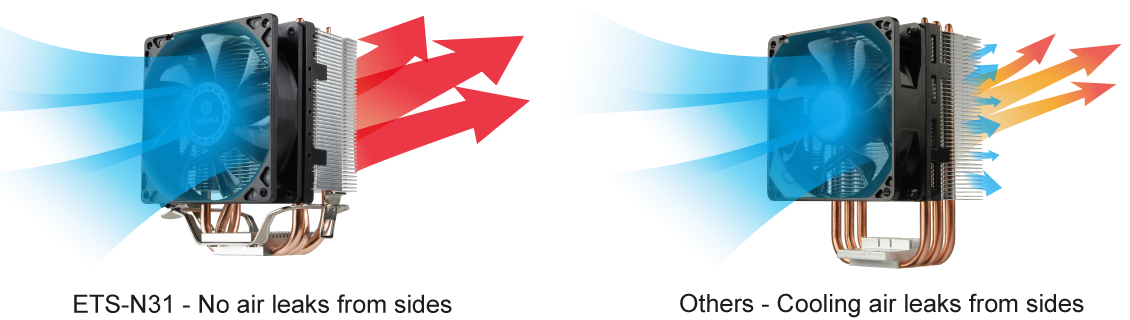

Unique air path creating high VEF (Vacuum Effect) to optimize the airflow

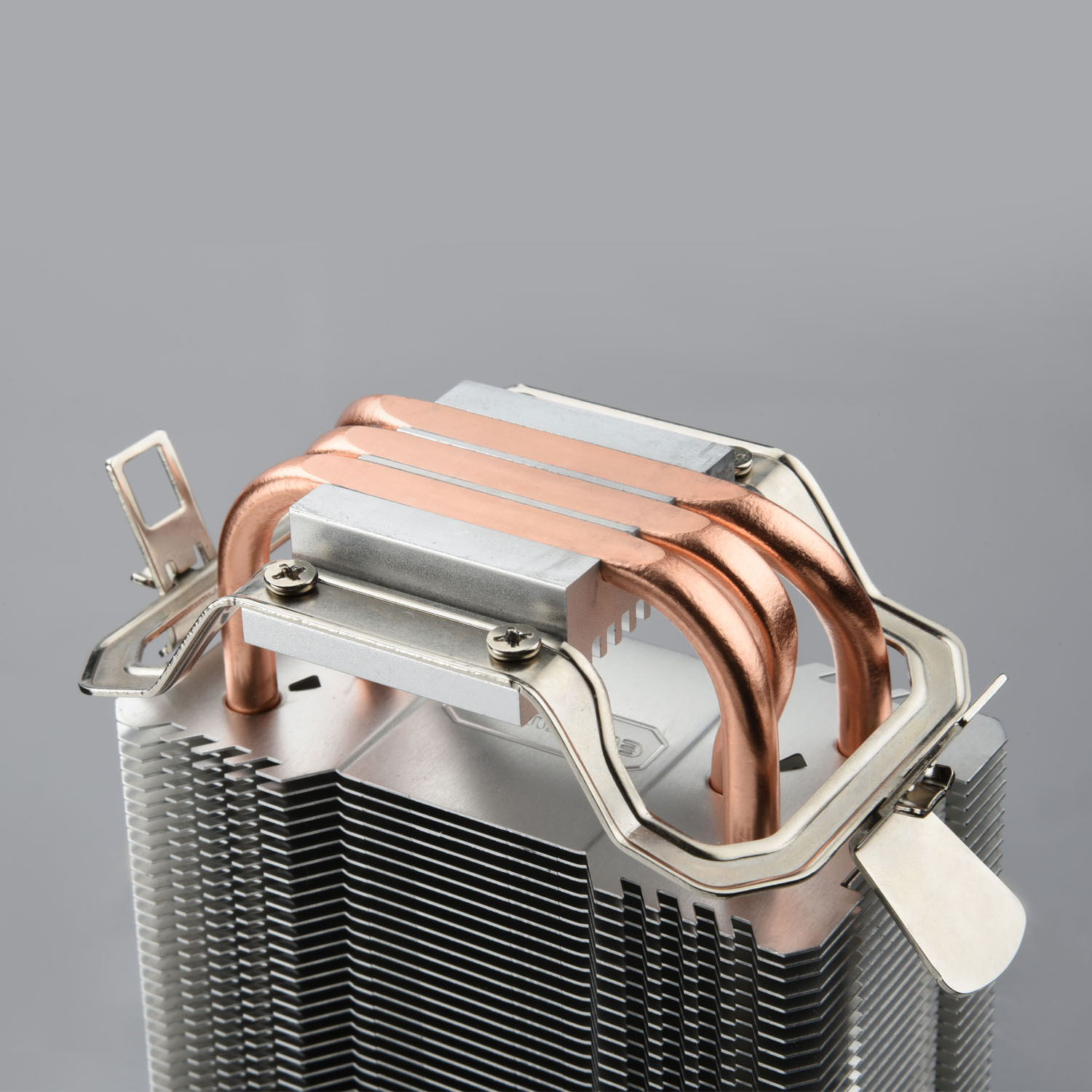

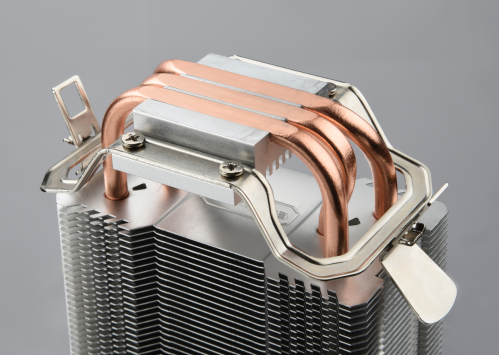

HDT (Heat-pipe Direct Touch) technology ensures rapid thermal conduction and eliminates CPU hot spots quickly

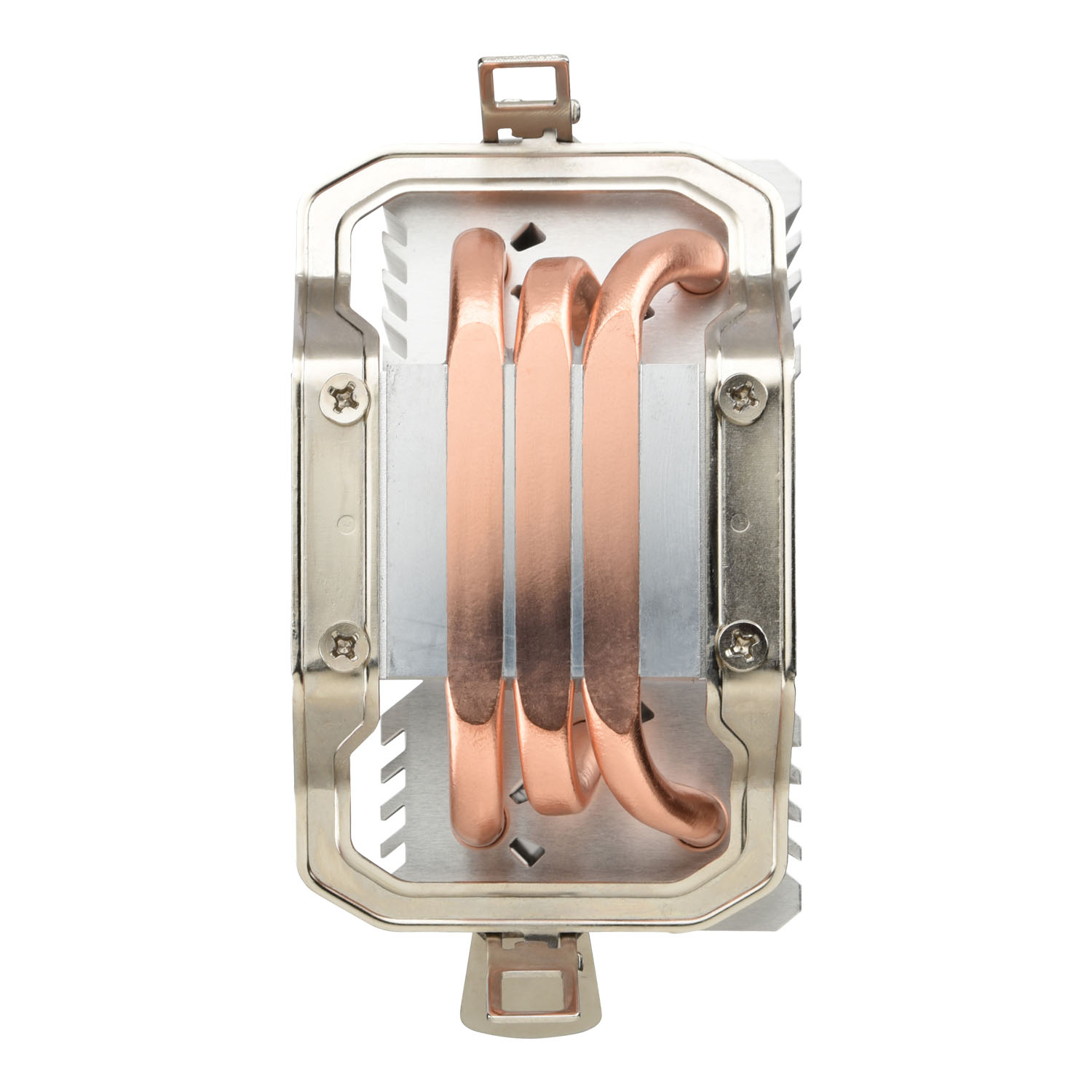

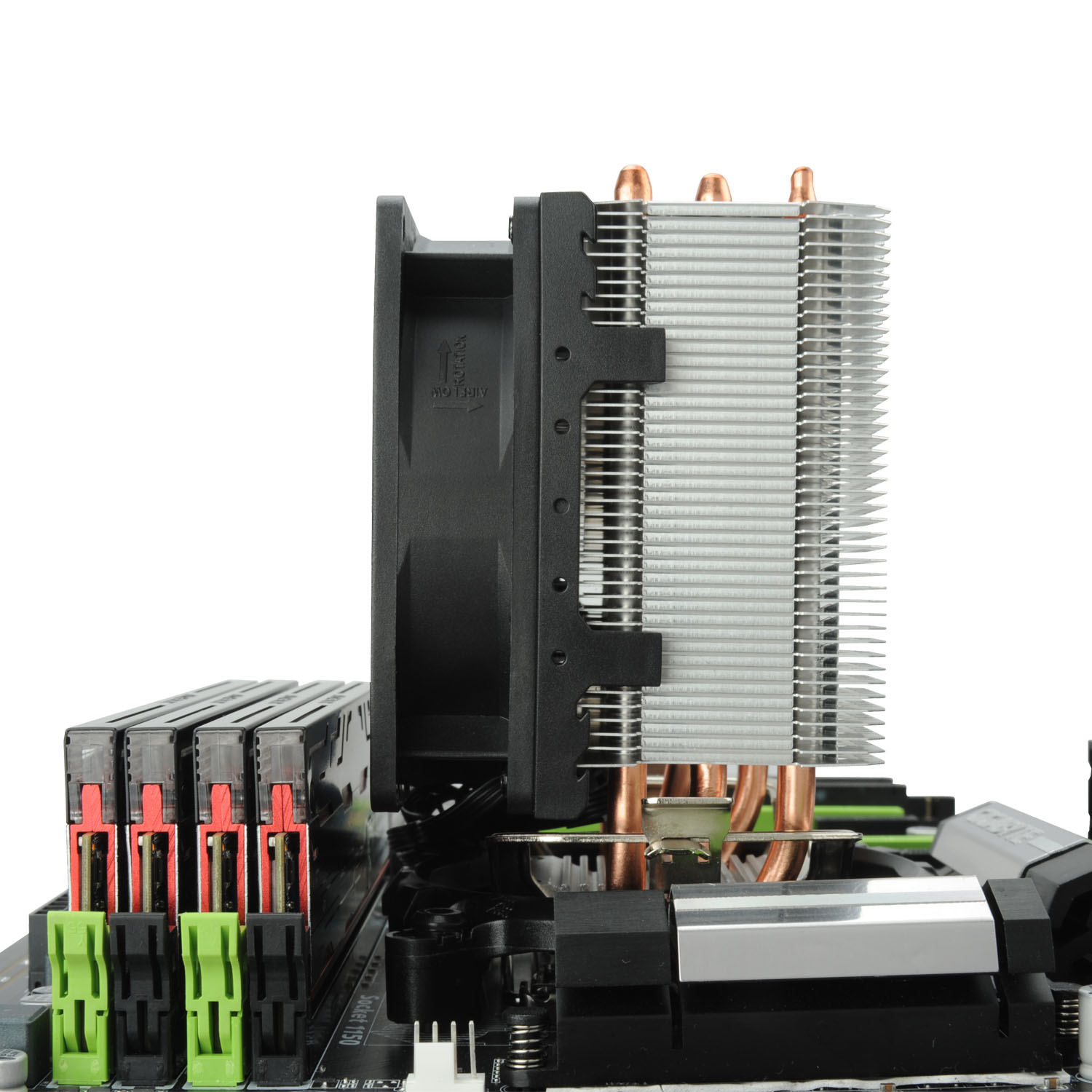

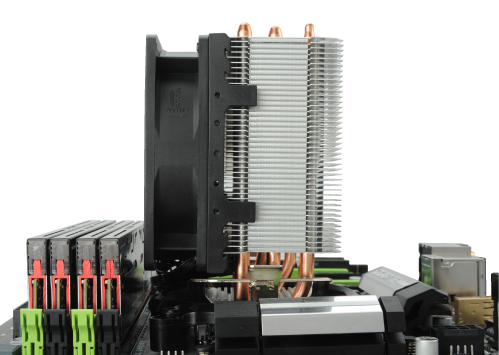

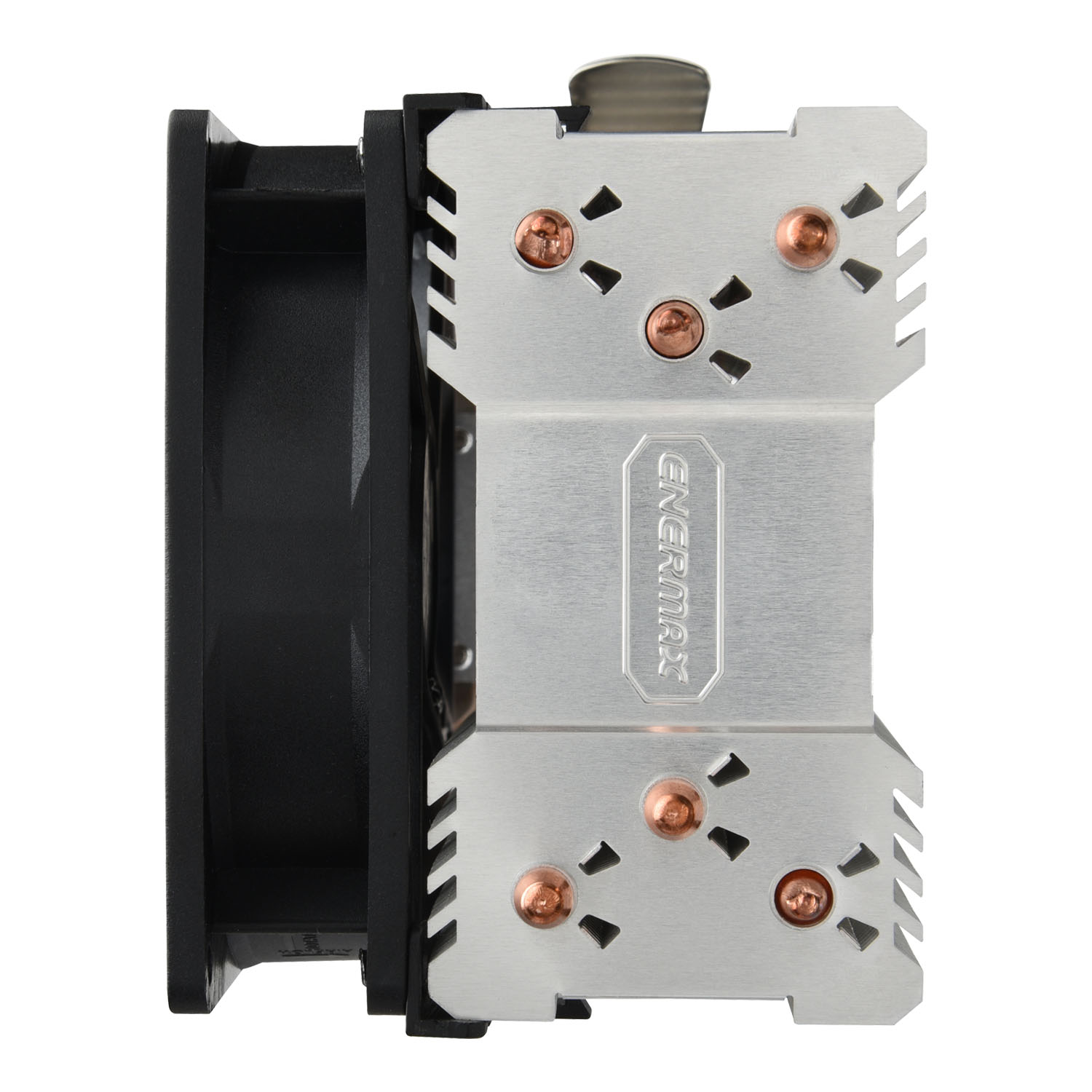

Asymmetric heat pipe design allows extra space for perfect RAM compatibility

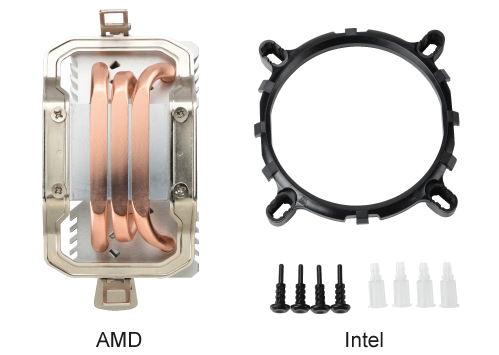

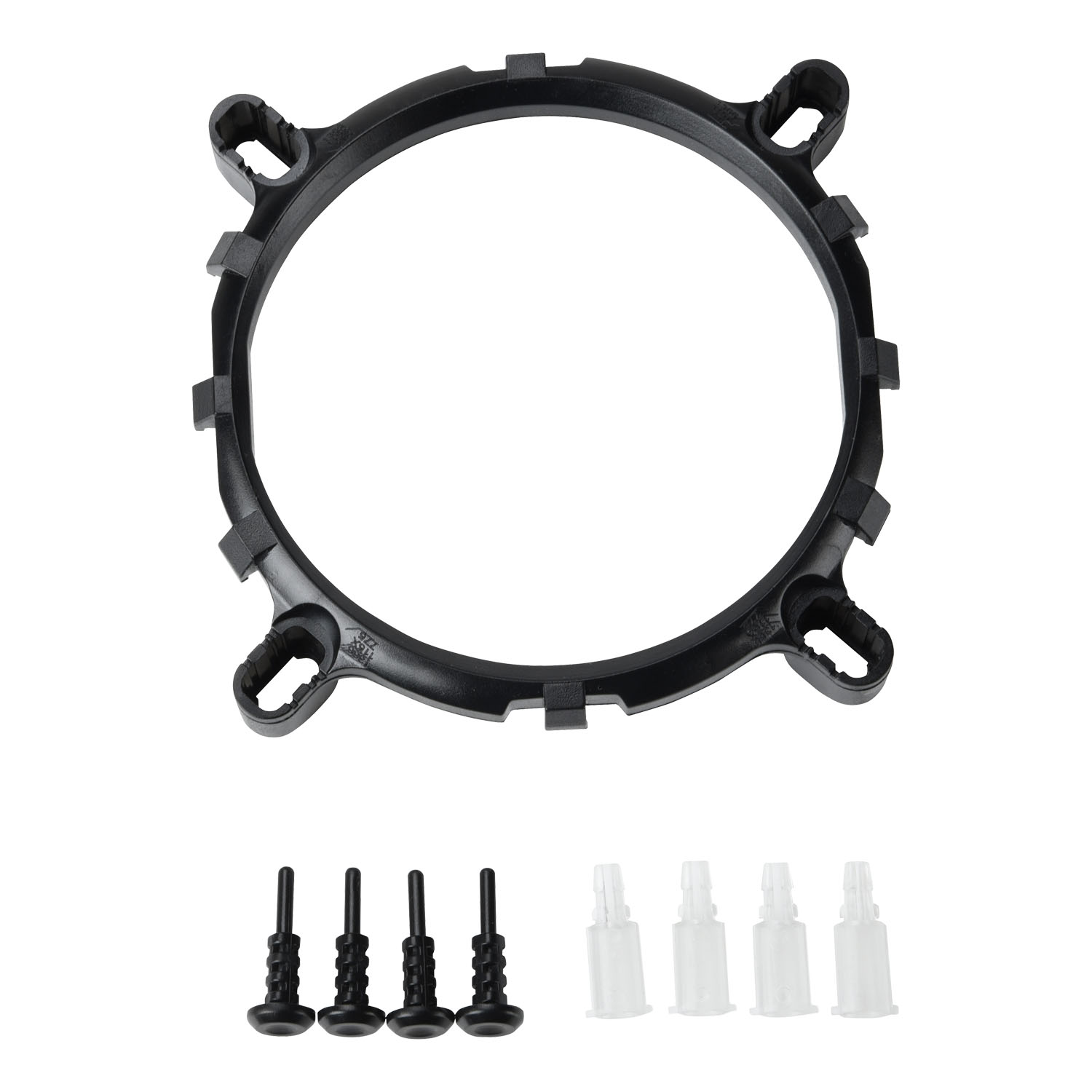

Tool-free mounting system ensures an effortless and easy installation

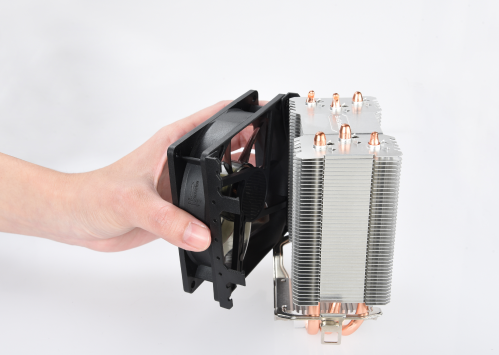

“1-clip” fan bracket design for user-friendly installation




Product Introduction

Model ETS-N31-02
CPU Socket Intel® LGA 1200/1366/1156/1155/1151/1150/775
AMD® AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+
Overall Dimension 95 (L) x 77.5 (W) x 125 (H) mm
Heat Sink Dimension 95 (L) x 50 (W) x 125 (H) mm
Weight 385 g
TDP (W) 130W
Heat Pipe 3 x Ø6 mm
Material Copper Heat Pipes/Aluminum Fins
Thermal Grease Dow Corning® TC-5121
Fan Dimension 92 x 92 x 25 mm
Fan Speed 800 ~ 2000 rpm
Fan Air Flow (CFM) 13.12 ~ 32.8 CFM
Air Flow (m3/h) 22.29 ~ 55.72 m3/h
Fan Static Pressure (mm-H2O) 0.86 ~2.15 mm-H2O
Fan Noise (dBA) 24.5 dBA
Connector 4 pin PWM connector
EAN 4713157722768
UPC 816163008988
Box Dimension 120 x 115 x 136 mm
Gross Weight / unit 485 g
Carton Dimension 495 x 475 x 306 mm
Q'ty / carton 32 PCS
Gross Weight / Carton 16.4 kg
