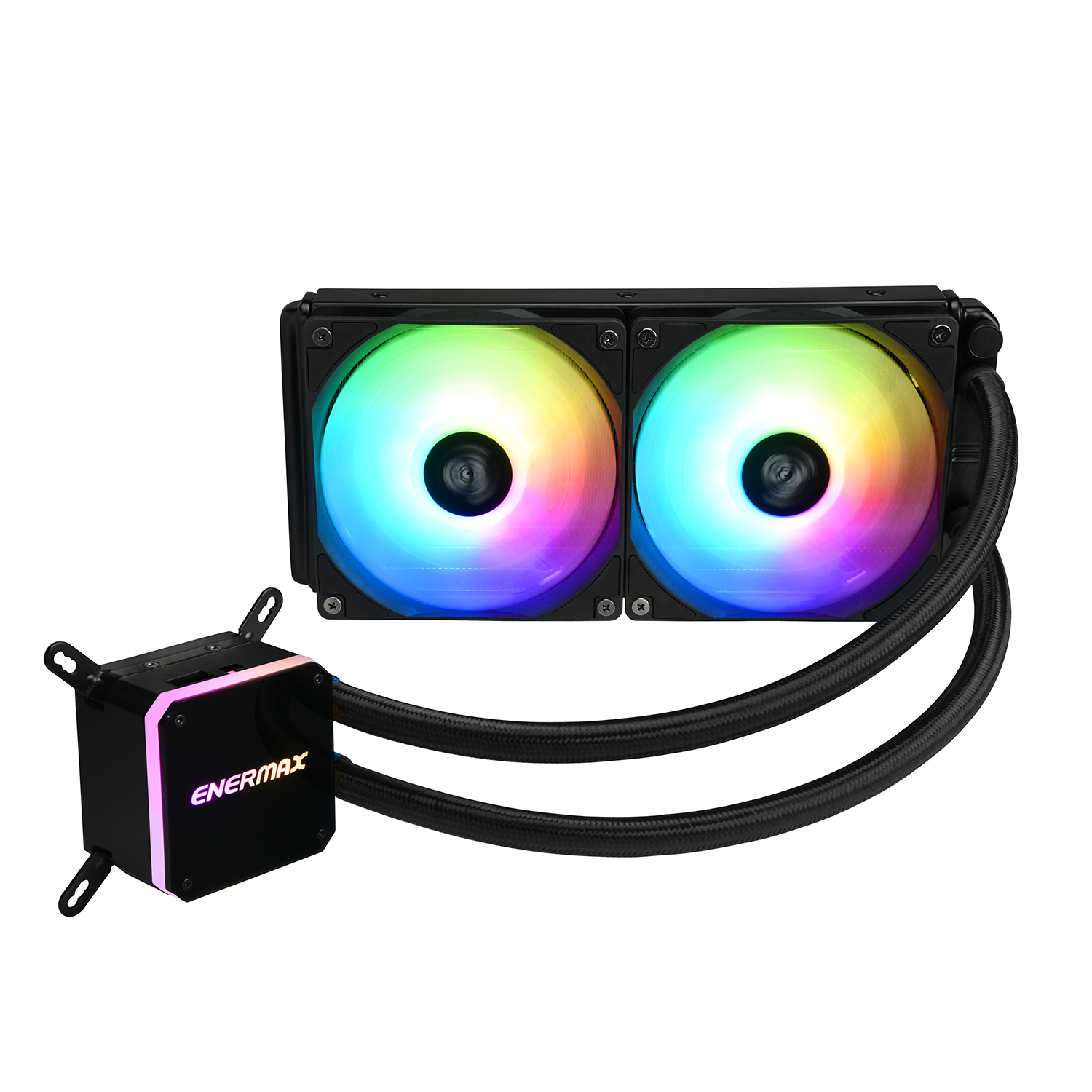

LIQMAX III ARGB Series 240mm Liquid CPU Cooler

‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ The luminous addressable RGB fan and Aurabelt™ water block
display gorgeous lighting effects with 16.8 million colors
‧ Exclusive dual-convex blade can create high-volume air
flow (72.1 CFM)

COMPARE Compare List (0)
AM5 Compatibility for CPU Cooler



Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer


The luminous addressable RGB fan and Aurabelt™ water block display gorgeous lighting effects with 16.8 million colors


Addressable RGB lighting synchronization

LIQMAX III ARGB is designed to synchronize with motherboards featuring an addressable RGB header (3 pin assignment is 5V/D/G). User can program preferred lighting effects via motherboard software


Exclusive dual-convex blades

Exclusive dual-convex blade creates down force air pressure (max. 1.98mmH2O) and high-volume air flow (max. 72.1CFM)


Anti-vibration rubber pads minimize noise during operation


Premium 400mm weaved tubing is perfect for mainstream system builds

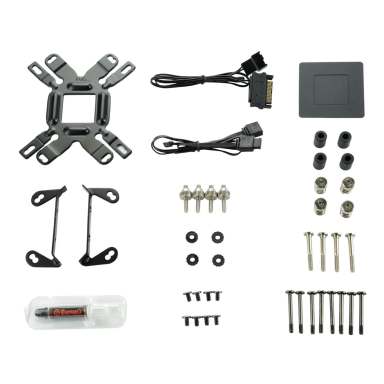

Universal Intel® and AMD® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)




Product Introduction


Installation Guide

CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP (W) 330W
Cold Plate Material Copper Base
Radiator Material Aluminum
Radiator Dimension 274 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12V
Pump Rated Current (A) 0.4 A
[ or 0.53A if not connected to 3 pin ARGB connector (5V/D/G) ]
Pump Rated Current - RGB LED (A) 0.18A (5V)
Fan Dimension (mm) 120 x 120 x 25 mm
Fan MTTF (hours) 50,000 hrs
Fan Speed (RPM) 500~1600 rpm
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.17A
Fan Rated Current RGB LED (A) 0.36 A (5V)
Fan Air Flow (CFM) 22.5~72.1 CFM
Fan Static Pressure (mm-H2O) 0.2~1.98 mm-H2O
Fan Maximum Noise (dBA) 14~27 dBA
Fan Connector 4 pin PWM connector
3 pin ARGB connector (5V/D/G)
Fan Screw 6#32
Thermal Grease Dow Corning® TC-5121C
EAN 4713157724427
UPC 819315024423
Box Dimension 317 x 205.05 x 137 mm
Gross Weight / unit 1.75 kg
Carton Dimension 435 x 332 x 440 mm
Q'ty / carton 6 PCS
Gross Weight / Carton 11.65 kg
