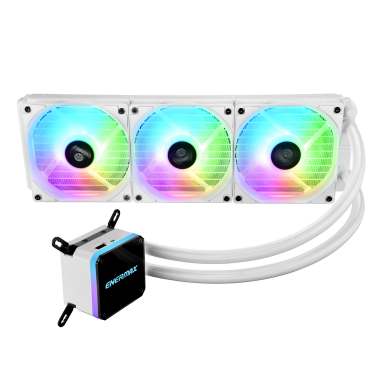

LIQMAX III ARGB Series 360mm Liquid CPU Cooler, White

‧ White CPU AIO liquid cooler composed of white fan frames, tube, and radiator
‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ The luminous addressable RGB fan and Aurabelt™ water block
display gorgeous lighting effects with 16.8 million colors
‧ ENERMAX integrated RGB control box

COMPARE Compare List (0)
AM5 Compatibility for CPU Cooler






Pure, White Styling

The white CPU AIO liquid cooler composed of white fan frames, tube, and radiator to show your system’s uniqueness and addressable RGB lighting effects




The luminous addressable RGB fan
and Aurabelt™ water block

Display gorgeous lighting effects with 16.8 million colors, for users to experience RGB lighting wonderland



2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G) Note: To use Razer Chroma to control lighting effects, your motherboard needs to be compatible with Razer Chroma

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed



Superior Cooling Performance (360W TDP)

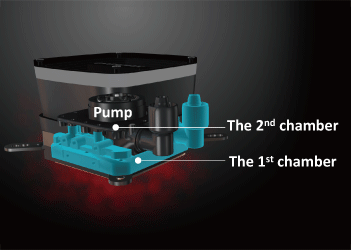

Patented Dual Chamber Design water block

Isolate the pump from the heat to prolong the cooler’s lifetime

Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

Exclusive dual-convex blades

Create down force air pressure
(max. 1.98mmH2O) and high-volume air flow
(max. 72.1CFM) to dissipate the radiator
heat efficiently



More durable and stable

400mm Weaved Tubing

Flexible and easy to installation beacuse of perfect tube length for mainstream system builds

Anti-vibration rubber pad on four-side fan frame

Absorb the vibration during the operation and provide a silent surroundings while operatin



QUICK AND EASY MOUNTING SYSTEM

Provide all-in-one bracket plate and support latest AMD & Intel socket. (including LGA1200 socket)
*Not compatible with AMD socket TR4, SP3



Dimension



Model ELC-LMT360-W-ARGB
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP 360 W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 394 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF ≧ 50,000 hrs
Pump Rated Voltage 12 V
Pump Rated Current 0.4 A
[ or 0.53 A if not connected to 3 pin ARGB connector (5V/D/G) ]
Pump Rated Current - RGB LED 0.18 A
Fan Dimension (Radiator) 120 x 120 x 25 mm
Fan MTTF ≧ 50,000 hrs
Fan Speed 500~1600 RPM ±10%
Fan Rated Voltage 12 V
Fan Rated Current 0.17 A
Fan Rated Current RGB LED 0.36 A
Fan Air Flow 22.5~72.1 CFM
Fan Static Pressure 0.2~1.98 mm-H2O
Fan Connector 4 Pin PWM + 3 Pin ARGB (5V/D/G)
Fan Maximum Noise 14~27 dBA
Thermal Grease Dow Corning® TC-5121C
Fan Screw 6#32
EAN 4713157725387
UPC 819315025383
Box Dimension 448 x 205 x 137 mm
Gross Weight / unit 2.192 kg
Carton Dimension 467x 292x 440 mm
Q'ty / carton 4 PCS
Gross Weight / Carton 9.788 kg
