‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ Luminous Aurabelt™ water block supports synchronizable RGB
lighting via motherboards with 4pin RGB header(s) (12VGRB)
‧ Exclusive dual-convex blade fan can create high-volume air flow
(90.1 CFM)

COMPARE Compare List (0)
AM5 Compatibility for CPU Cooler

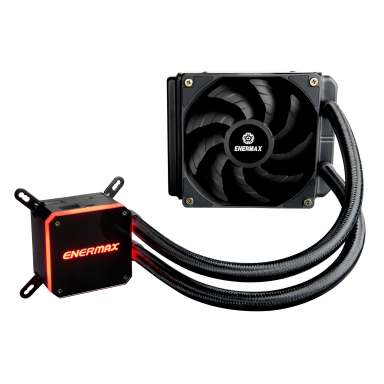

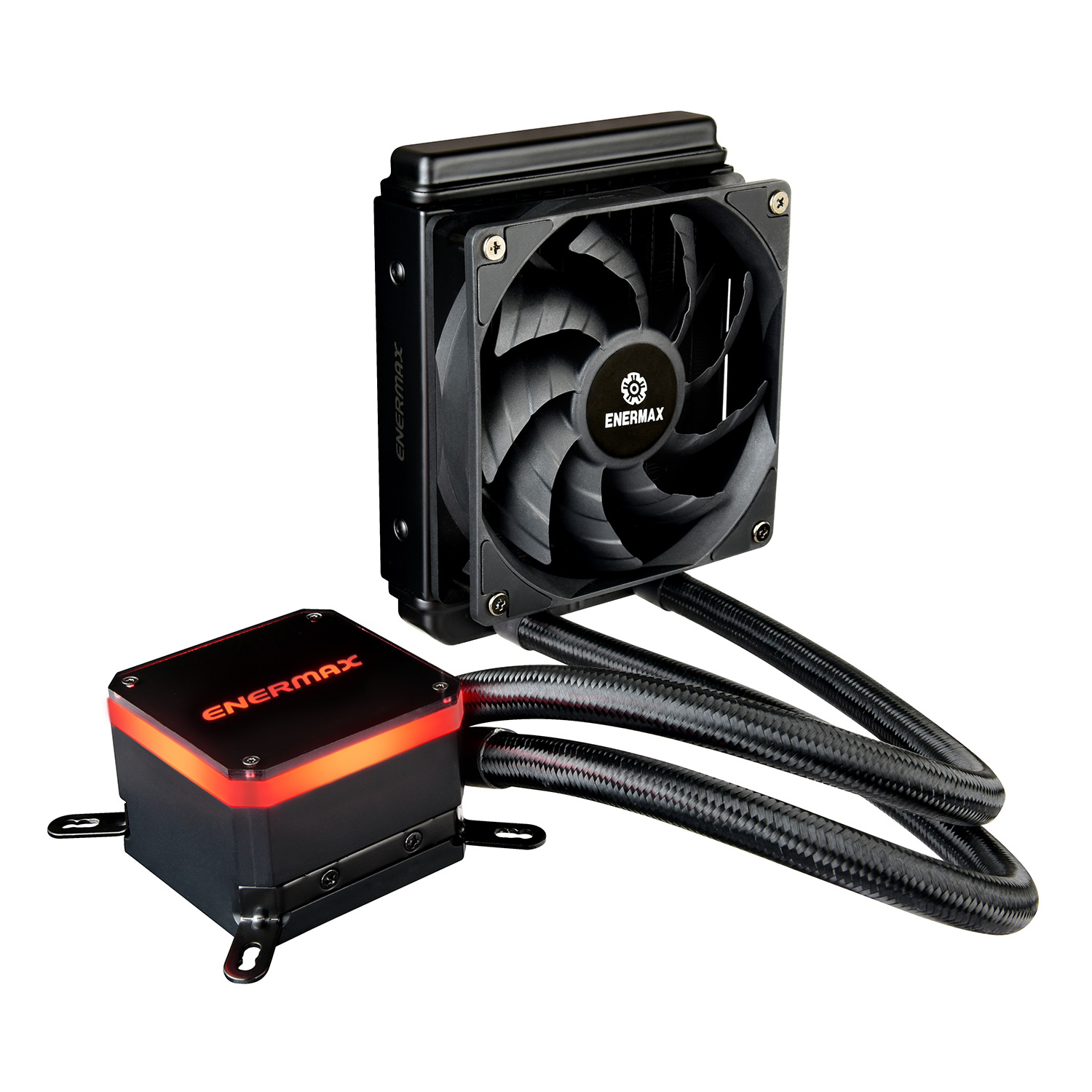

Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer


Premium RGB water block featuring luminous Aurabelt™ design

Water block supports synchronizable RGB lighting via motherboards with 4pin RGB header(s) (12VGRB)

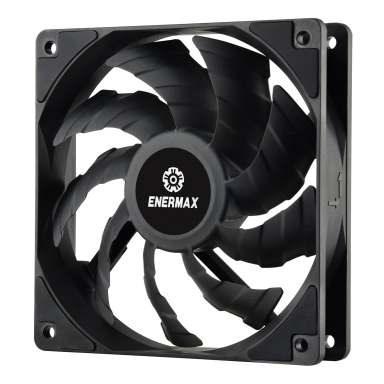

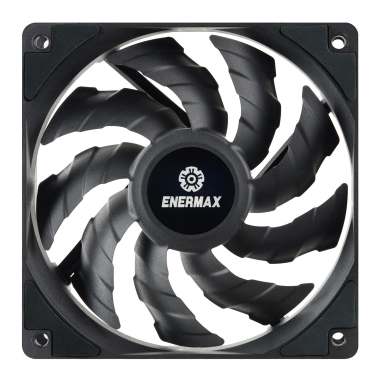

Exclusive dual-convex blades

Exclusive dual-convex blade fan creates down force air pressure (max. 3.1mmH2O) and high-volume air flow (max. 90.1CFM)


Anti-vibration rubber pads help minimize noise during operation


Premium 400mm weaved tubing is perfect for mainstream system builds


Universal Intel®and AMD® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)




Product Introduction


Installation Guide

Model ELC-LMT120-HF
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP (W) 300W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 154 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12 V
Pump Rated Current (A) 0.4 A
[ or 0.49A if not connected to 4 pin RGB connector(12V/G/R/B) ]
Pump Rated Current - RGB LED (A) 0.18 A
Fan Dimension (mm) 120 x 120 x 25 mm
Fan MTTF (hours) 50,000 hrs
Fan Speed (RPM) 500~2000 RPM
Fan Rated Voltage (V) 12 V
Fan Rated Current (A) 0.27 A
Fan Air Flow (CFM) 22.5~90.1 CFM
Fan Static Pressure (mm-H2O) 0.2~3.1 mm-H2O
Fan Maximum Noise (dBA) 14~32 dBA
Fan Connector 4 pin PWM
Fan Screw 6#32
Thermal Grease Dow Corning® TC-5121C
EAN 4713157723895
UPC 819315023891
Box Dimension 259 x 215 x 137 mm
Gross Weight / unit 1.41 kg
Carton Dimension 539 x 300 x 460 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 12.546 kg
