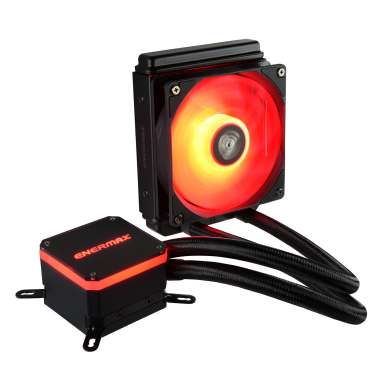

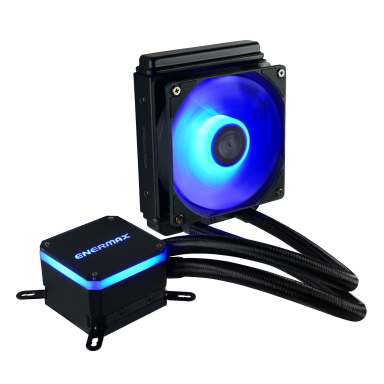

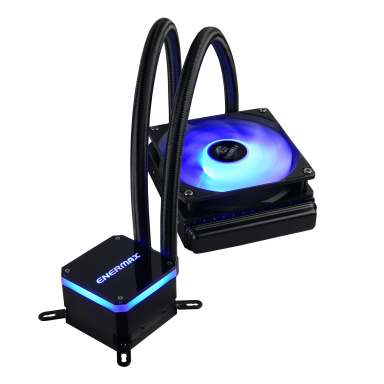

LIQMAX III RGB series 120mm CPU liquid cooler

‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ Aurabelt™ design on water block and luminous fan display
vivid RGB lighting effects
‧ Exclusive dual-convex blade can create high-volume air
flow (72.1 CFM)



Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

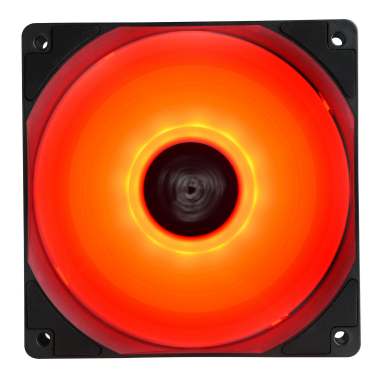

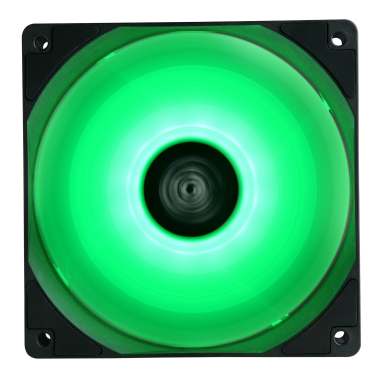

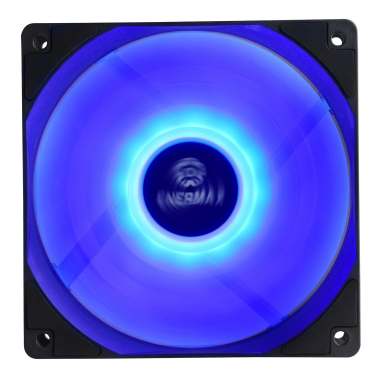

Aurabelt™ design on water block and hub-lighting RGB fan display vivid RGB lighting effects

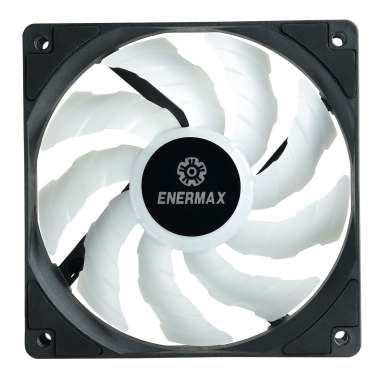

Exclusive dual-convex blades

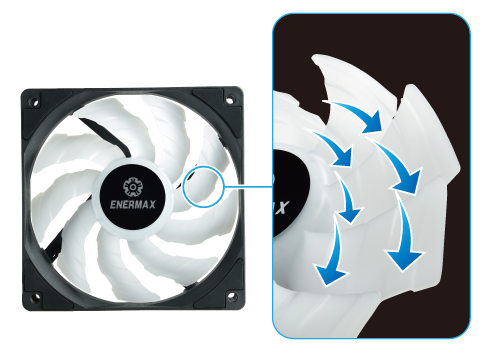

Exclusive dual-convex blade creates down force air pressure (max. 1.98mmH2O) and high-volume air flow (max. 72.1CFM)

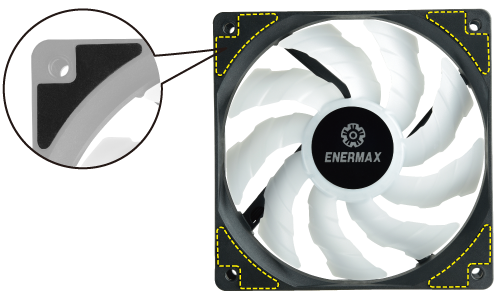

Anti-vibration rubber pads help minimize noise during operation


Premium 400mm weaved tubing is perfect for mainstream system builds

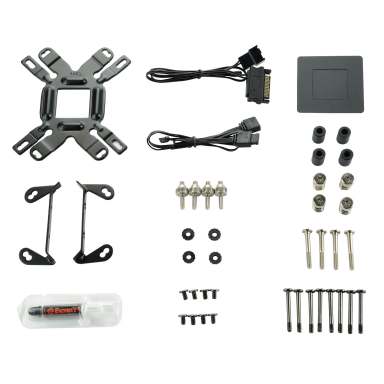

Universal Intel®and AMD® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)




Product Introduction


Installation Guide

Model ELC-LMT120-RGB
CPU Socket Intel® LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150/775
AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
TDP (W) 260W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 154 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12 V
Pump Rated Current (A) 0.4 A
[ or 0.49A if not connected to 4 pin RGB connector(12V/G/R/B) ]
Pump Rated Current - RGB LED (A) 0.18 A
Fan Dimension (mm) 120 x 120 x 25 mm
Fan Speed (RPM) 500~1600 RPM
Fan Rated Voltage (V) 12 V
Fan Air Flow (CFM) 22.5~72.1 CFM
Fan Static Pressure (mm-H2O) 0.2~1.98 mm-H2O
Fan Rated Current (A) 0.17 A
Fan Rated Current RGB LED (A) 0.36 A (12V)
Fan Maximum Noise (dBA) 14~27 dBA
Fan MTTF (hours) 50,000 hrs
Fan Connector 4 pin PWM connector
4 pin RGB connector (12V/G/R/B)
Fan Screw 6#32
Thermal Grease Dow Corning® TC-5121C
EAN 4713157724250
UPC 819315024256
Box Dimension 254 x 215 x 137 mm
Gross Weight / unit 1.41 kg
Carton Dimension 539 x 300 x 460 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 12.546 kg
  • OverClocked inside - LIQMAX III RGB 240
